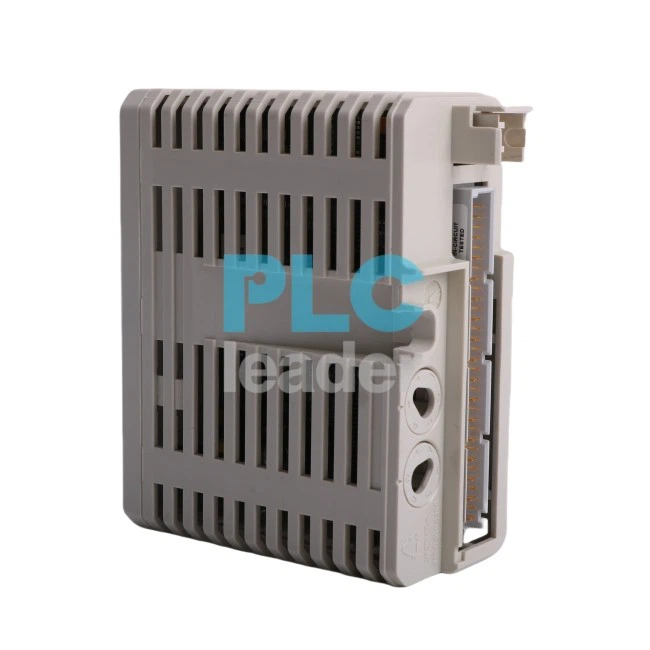

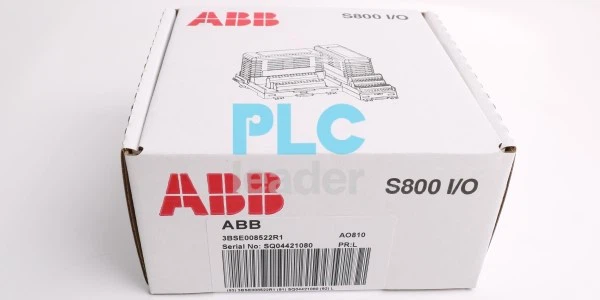

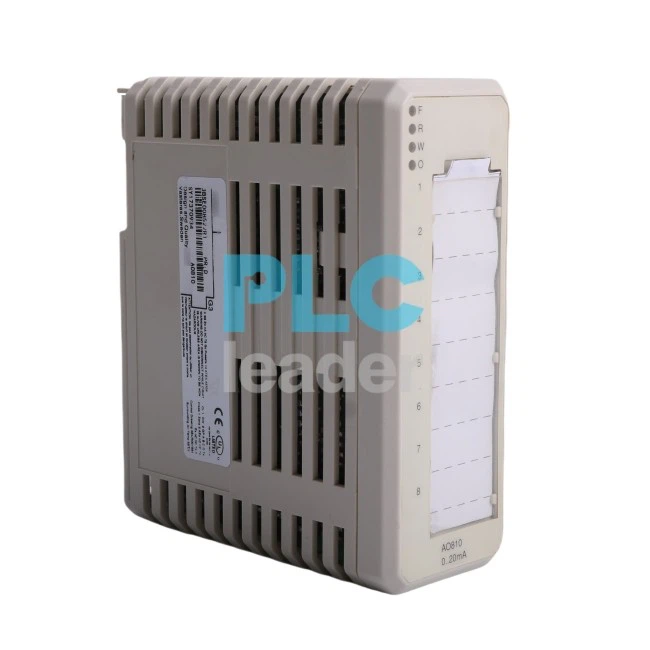

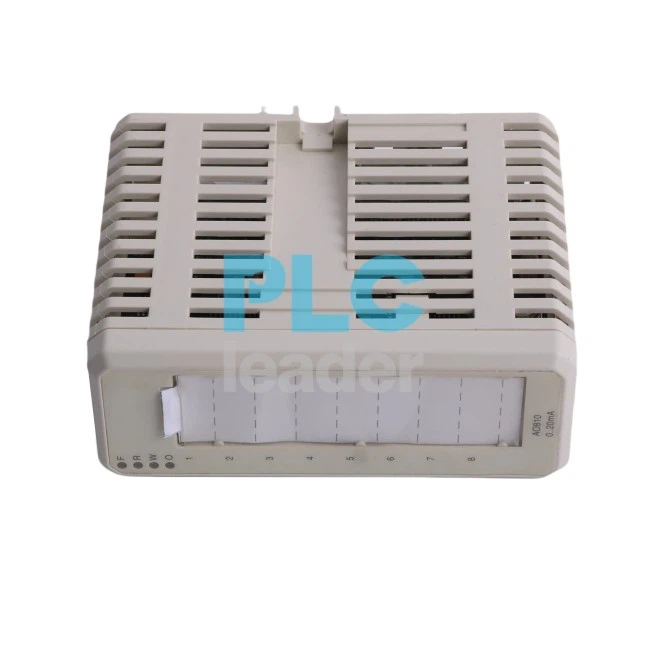

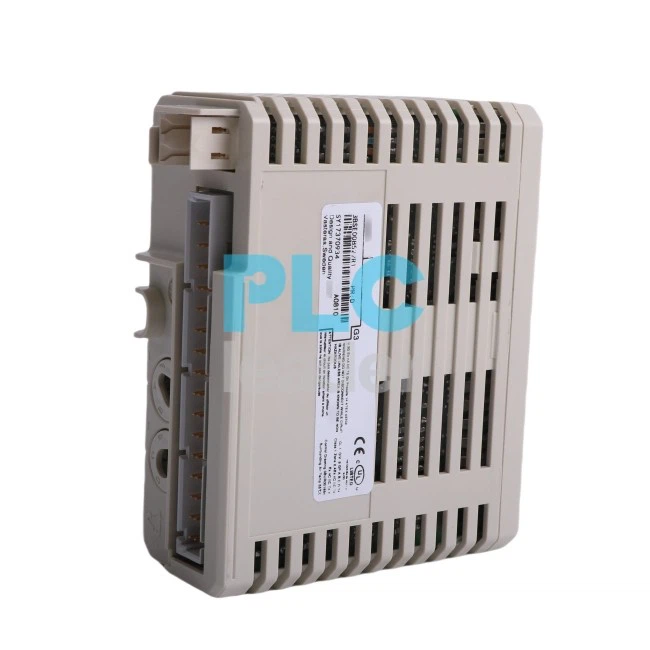

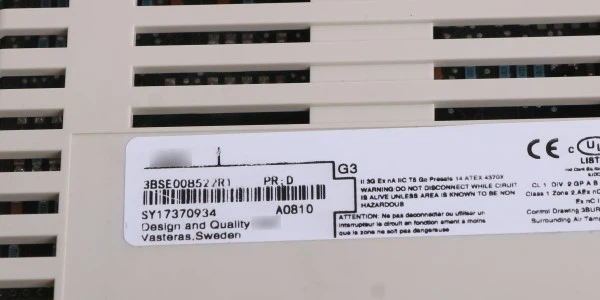

The ABB AO810 3BSE008522R1 is a high-performance analog output module designed to provide accurate and reliable control in various industrial automation applications. It forms part of ABB's renowned AC 800M controller series, offering seamless integration and excellent performance in process control systems. The module is widely used in industries such as oil and gas, power generation, chemical processing, and manufacturing, thanks to its robust features and compatibility with ABB's 800xA Distributed Control System (DCS).
Contact Us
Sales manager : Vicky || RFQ E-mail : sales7@apterpower.com
Skype : live:2435aba439730baa || Tel/WhatsApp : +8618030175807
keywords: ao810;3bse008522r1;abb ao810;ao810 abb;ABB AO810 3BSE008522R1;AO810 pdf;datasheet 3BSE008522R1;AO810 manual;3BSE008522R1 sell
Technical Specifications
|
Parameter |
Details |
|
Part Number |
AO810 3BSE008522R1 |
|
Channels |
8 Analog Output Channels |
|
Output Signal Types |
Voltage (0-10 V) and Current (0-20 mA or 4-20 mA) |
|
Resolution |
12 bits |
|
Load Resistance |
0 to 500 Ω (current output), >10 kΩ (voltage output) |
|
Update Time |
10 ms per channel |
|
Isolation |
Channel-to-ground isolation |
|
Power Supply Voltage |
24 V DC |
|
Operating Temperature |
-20°C to +70°C |
Key Features
- Multi-Signal Support:The AO810 supports both voltage and current outputs, making it adaptable to a wide range of field devices such as actuators, control valves, and industrial instruments.
- Flexible Configuration:The module can be easily configured to match specific application requirements, offering flexibility in industrial automation projects.
- Advanced Reliability:Robust diagnostics and fault-tolerant features ensure minimal system downtime and operational efficiency.
- Scalability:The AO810 module can be seamlessly integrated into expanding control systems, supporting scalable and future-ready automation.
- Low Power Consumption:Energy-efficient operation reduces power costs and supports sustainable industrial practices.
Common Questions (FAQ)
1.What types of signals does the AO810 module support?
The AO810 supports both voltage (0-10 V) and current (0-20 mA or 4-20 mA) output signals.
2.Is the module compatible with other ABB controllers?
Yes, the AO810 is designed for seamless integration with ABB's AC 800M controllers and the 800xA DCS platform.
3.What diagnostic features are included?
The module includes advanced diagnostics for fault detection, ensuring system reliability and operational efficiency.
4.Can the module be used in harsh environments?
Yes, its robust design and wide operating temperature range make it suitable for challenging industrial conditions.
5.How many output channels does the AO810 provide?
The module features 8 analog output channels.
