AB 1756

ControlLogix 1756 Controllers, I/O and Chassis Parts

Allen-Bradley Bulletin 1756 covers ControlLogix controllers, digital and analog I/O, communication modules, chassis, power supplies and specialty hardware. Choose the required component type before selecting a catalog number.

For replacement parts, check the complete 1756 catalog number, Series and revision. Chassis configuration, Electronic Keying and the removable terminal block (RTB) can also affect module selection.

PLCLeader supplies selected industrial automation spare parts independently of Rockwell Automation. Availability and condition are confirmed by quotation.

Controller Selection 1756-IF16 Analog I/O 1756-A10 Chassis Request 1756 Parts
First 1234567 Last

1756 ControlLogix Module Families

The 1756 catalog prefix covers controllers, I/O and supporting chassis hardware. The exact catalog number identifies the required function and configuration.

Hardware Group Example Catalog Numbers Replacement Focus
Controllers 1756-L71, 1756-L83E Controller generation, firmware, installed project and communication requirements.
Digital Inputs 1756-IB16, 1756-IB32 Input voltage, channel count, input circuit type and field wiring.
Digital Outputs 1756-OB32, 1756-OW16I Transistor or relay output, load ratings and terminal wiring.
Analog I/O 1756-IF16, 1756-OF8 Current or voltage ranges, input/output function and compatible RTB.
Communication 1756-EN2T, 1756-EN2TR Network interface, topology, module firmware and project profile.
Chassis and Power 1756-A10, 1756-PA72 Chassis slot count, hardware Series, input supply and backplane loading.

ControlLogix Chassis and Backplane

The 1756 chassis provides module slots and the backplane connection between controllers, communication modules and I/O. A compatible chassis power supply distributes power to the installed modules.

1756-A4 4 slots
1756-A7 7 slots
1756-A10 10 slots
1756-A13 13 slots
1756-A17 17 slots

Standard 1756 chassis are intended for horizontal panel mounting. Select the chassis model and Series supported by the installed equipment. Specialty and safety hardware may have additional chassis requirements.

Power and slot planning: Check the power supply input type, backplane current demand, module spacing and available slots. Chassis power does not replace the field-side power required by certain I/O circuits.

View 1756-A10 Ten-Slot Chassis

Electronic Keying and Module Revisions

In Studio 5000 Logix Designer, Electronic Keying compares the physical module with the device configured in the I/O tree. The selected mode affects whether a connection is accepted.

Keying Mode How It Works Replacement Implication
Exact Match Vendor, Device Type, Product Code, Major Revision and Minor Revision must match the project definition. Use hardware with the configured identity and matching revision.
Compatible Module The installed device must be able to emulate the project-defined device. Compatibility is product-specific. Typically the same catalog number and a supported same or higher Major Revision, subject to Minor Revision rules.
Disable Keying The device identity attributes are not checked for the connection. Not a substitute for compatibility verification. Rockwell strongly discourages this setting; it must not be used for safety I/O.

Compatible Module revision rule: With the same Major Revision, the installed device typically needs the same or higher Minor Revision. With a higher Major Revision, a different Minor Revision may be accepted if the device supports the required emulation. Confirm the specific product release notes.

Changing Electronic Keying while online can interrupt module connections and cause loss of I/O data. The configured keying mode should be reviewed by the responsible automation engineer before replacement.

1756-IF16 Analog Input and RTB Selection

The 1756-IF16 is a ControlLogix 16-point current/voltage analog input module. Field wiring uses a compatible removable terminal block or supported interface wiring system.

1756-IF16 Hardware Details

  • Module 1756-IF16 analog input
  • Input Function 16 current/voltage analog input points
  • Chassis Width One 1756 module slot
  • Signal Isolation Input-to-backplane isolation; no isolation between individual inputs
  • RTB Keying User-defined mechanical keying
View 1756-IF16 Analog Input Module
Allen-Bradley 1756-IF16 ControlLogix 16-point analog input module

Allen-Bradley 1756-IF16 analog input module product view.

Compatible 1756-IF16 Removable Terminal Blocks

1756-TBCH 36-position cage-clamp removable terminal block.
1756-TBS6H 36-position spring-clamp removable terminal block.

RTB supply: Standard 1756 I/O modules generally do not include an RTB. Confirm the required terminal block, associated housing, wiring arrangement and whether these accessories are included in the offered item.

The 1756-IF16 is not a dedicated RTD input module. For direct RTD measurement, identify the appropriate temperature input hardware instead of assuming that an IF16 can replace it.

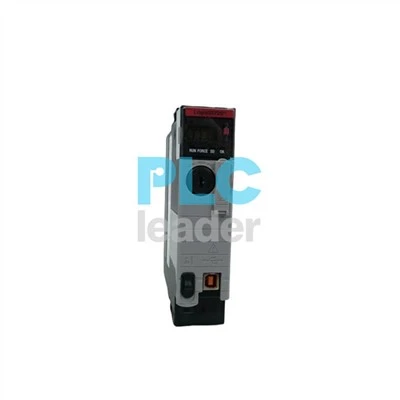

1756 Controllers: Series and Firmware

Controller replacement depends on the installed catalog number, firmware and application project. A change between Logix5570 and Logix5580 generations may require project and communication changes.

Controller Replacement Essentials

  • Controller Reference Exact catalog number and Series
  • Firmware Installed firmware revision and compatible project version
  • Communication Network interfaces and connected communication modules
  • Application Controller memory, I/O configuration and safety requirements where applicable
View ControlLogix Controller Selection Guide
Allen-Bradley 1756-L71 Logix5571 controller module

1756-L71 Logix5570 controller example.

Replacement Matching Checklist

These details help identify a replacement for the installed ControlLogix chassis and project.

  • Catalog Number: Full 1756 reference and suffix.
  • Series and Revision: Hardware Series and applicable major/minor revision.
  • Electronic Keying: Exact Match, Compatible Module or configured project requirement.
  • Chassis and Slot: Chassis model and slot location.
  • RTB and Field Wiring: Terminal block reference and wiring connection type.
  • Firmware and Project: Controller firmware and Logix Designer compatibility.

Include the required quantity, destination and any readable module-label photographs. Offered Series, condition, availability and applicable warranty terms are confirmed in the quotation.

ControlLogix Parts and Technical Resources

1756 Controllers Detailed Logix controller generations, firmware and processor selection. 1756-IF16 Analog Input Module reference for current/voltage analog input applications. 1756-A10 Chassis Ten-slot ControlLogix chassis product information. Allen-Bradley Spare Parts Other Rockwell Automation controller and system families. 1756 I/O Specifications Rockwell publication 1756-TD002: electrical ratings and RTB compatibility. 1756 Chassis Specifications Rockwell publication 1756-TD006: chassis dimensions, slots and backplane information. Electronic Keying Guide Rockwell publication LOGIX-AT001: module identity and revision matching. Official 1756-A10 Product Page Manufacturer information for the 10-slot ControlLogix chassis.

Frequently Asked Questions

Can every 1756 module be used in any ControlLogix chassis? +

No universal compatibility should be assumed. Standard supported modules can be installed in suitable 1756 chassis slots, but some safety and specialty modules have additional chassis, placement or power requirements.

Does Compatible Module keying accept any newer revision? +

No. The physical module must support the configured device identity and required emulation. Major and Minor Revision rules apply, and some newer revisions may still be rejected.

Which removable terminal blocks fit 1756-IF16? +

Rockwell lists 1756-TBCH cage-clamp and 1756-TBS6H spring-clamp RTBs for the 1756-IF16. The required terminal block is generally ordered separately.

Can 1756-IF16 directly replace an RTD input module? +

No direct replacement should be assumed. The 1756-IF16 is designed for current/voltage analog inputs, not direct RTD measurement.

Can I replace a Logix5570 controller with Logix5580 without a project change? +

Do not assume a direct swap. Controller generation changes can affect firmware, software, communications and project configuration. Review the applicable Rockwell migration guidance.

Request Allen-Bradley 1756 Spare Parts

Send the complete 1756 catalog number, Series or revision, installed chassis and required quantity. For I/O modules, include the RTB reference and Electronic Keying requirements where known.
