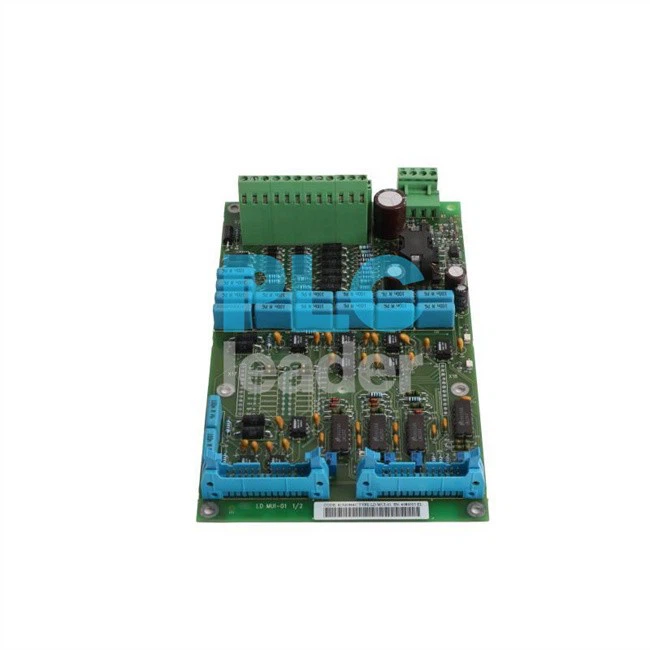

ABB LDMUI-01 61320946C I/O Module

The ABB LDMUI-01 61320946C is a universal I/O module designed specifically for industrial automation control systems. It connects field sensors and actuators with higher-level control devices (such as PLCs and DCSs), fulfilling a key role in signal conversion and transmission. It uniformly collects and processes analog and digital signals from the field, then uploads them to the control system. It also receives and issues control commands to actuators, making it a key component for device linkage and data exchange in industrial production.

Manufacturer: ABB
Product Numbers: LDMUI-01 61320946C
Product Type: I/O Module
Country of Origin: Sweden
Place of shipment: Xiamen, China
Condition: 100% Original
Warranty: 1 Year
Operating Temperature: -25°C to +70°C
Storage Temperature: -40°C to +85°C
Humidity: 5-95% non-condensing
Analog Input: 4-20mA/0-10V
Digital Input: 24V DC
Resolution: 16-bit
Input Impedance: 250Ω
Input Voltage: 24V DC
Output Current: 0.5A max per channel

Hot Tags: ldmui 01 61320946c ; ABB LDMUI-01 61320946C ; LDMUI-01 61320946C pdf ; LDMUI-01 61320946C datasheet ; LDMUI-01 61320946C manual ; LDMUI-01 61320946C sell ; LDMUI-01 61320946C new ; LDMUI-01 61320946C ABB .

⚙️ Mixed Signal Processing: Integrating 8 digital inputs, 4 digital outputs, 4 analog inputs, and 2 analog outputs, it can simultaneously process both digital signals (such as equipment start and stop signals) and analog signals (such as temperature and pressure signals), eliminating the need for multiple additional modules and simplifying system configuration.
⚙️ High-Precision Signal Conversion: Analog input accuracy reaches ±0.1% of full scale, and output accuracy reaches ±0.2% of full scale. This allows precise acquisition of weak field signals and stable output of control commands, preventing equipment control deviations caused by signal errors.
⚙️ Flexible Signal Configuration: Analog channels can be software-selected for 0-10V DC or 4-20mA signal types, and digital inputs support dry/wet contact switching, accommodating various brands and types of field sensors and actuators, ensuring strong compatibility.
⚙️ Fault Self-Diagnosis: Built-in signal monitoring circuitry sends a real-time fault code to the higher-level system when an input or output channel experiences a disconnect, short circuit, or signal exceeds a certain limit. The module's fault indicator also illuminates, enabling maintenance personnel to quickly locate the problem.
