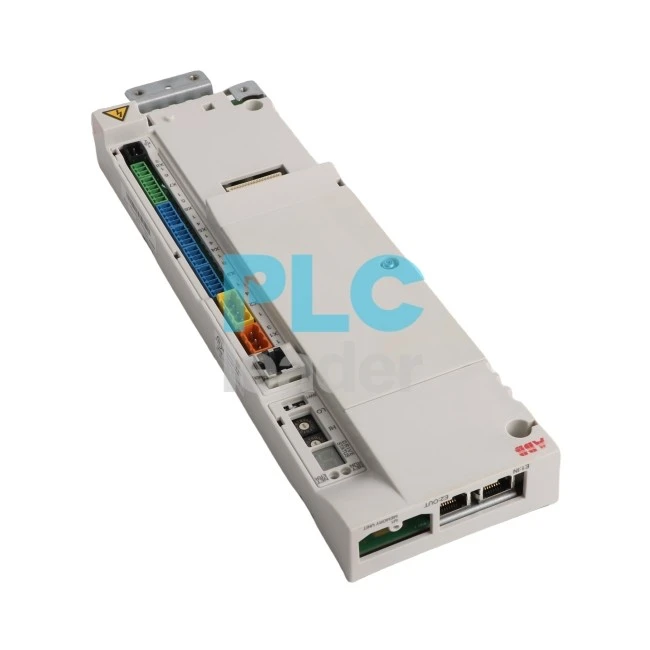

The GCU-02 Control Unit is typically used with ABB's ACS800 and similar drive series, acting as a central controller for drive operations. It manages signals, monitors performance, handles feedback inputs, and provides diagnostic information to optimize energy use and minimize downtime. As a modular component, it simplifies installation and configuration in complex drive systems, reducing commissioning time.
The part number 3AXD50000028861 refers to ABB's globally traceable and standardized version of the GCU-02, ensuring quality and compatibility across various markets and applications.
Technical Specifications
| Parameter | Details |
| Product Name | GCU-02 Control Unit |
| ABB Part Number | 3AXD50000028861 |
| Compatibility | ABB ACS800 series drives |
| Input Power | Supplied internally by the drive system |
| Communication Protocols | Supports ABB fiber optic links and internal bus |
| Interface Ports | I/O channels, encoder input, fiber-optic ports |
| Mounting | Plug-in module for ACS800 drive frames |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Storage Temperature | -40°C to +70°C (-40°F to 158°F) |
| Protection Class | IP20 (when installed in drive cabinet) |
| Compliance | CE, UL, cUL, RoHS, ISO 9001 |
Functional Characteristics
Drive Communication and Signal Handling
The GCU-02 handles input/output signal processing, feedback loop integration, and drive-to-drive communication, ensuring real-time responsiveness and safe operation.
Plug-and-Play Module
Designed for tool-free installation into compatible ABB drive units, reducing setup time and simplifying field replacement.
High Processing Speed
Equipped with firmware that ensures accurate processing of control algorithms, especially in dynamic load conditions.
Multi-Function Interface
Supports encoder feedback, analog/digital I/Os, and fiber-optic links, enabling seamless integration with various field devices and sensors.
Robust Build for Industrial Environments
Designed for vibration, dust, and thermal resistance, ensuring stable operation in challenging conditions.
Diagnostics and Troubleshooting
Provides system alerts, fault codes, and historical data to simplify troubleshooting and preventive maintenance.
