About 1756-L61 Description

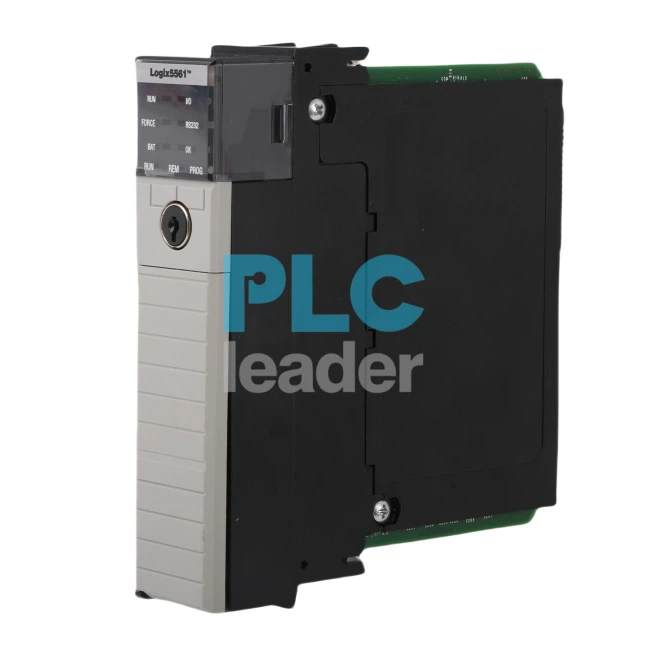

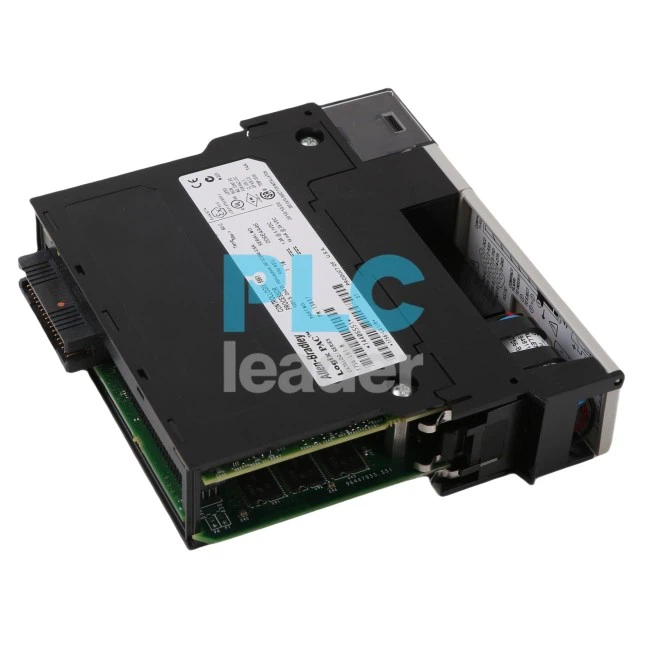

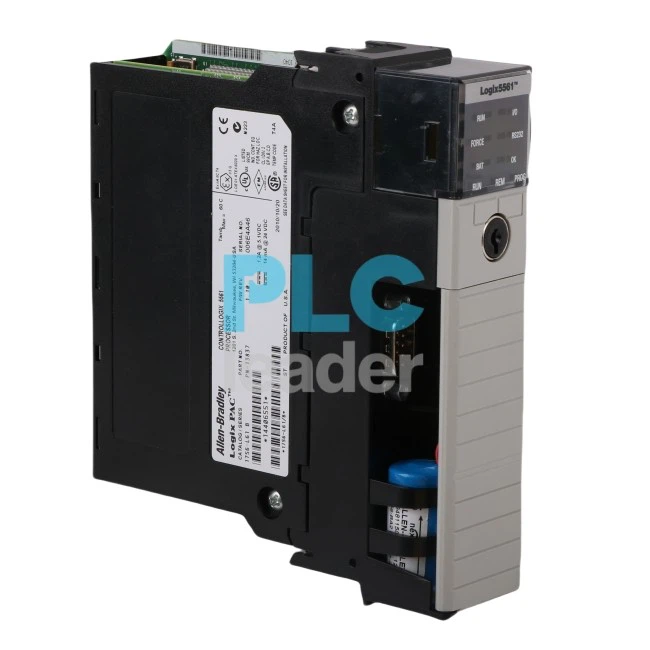

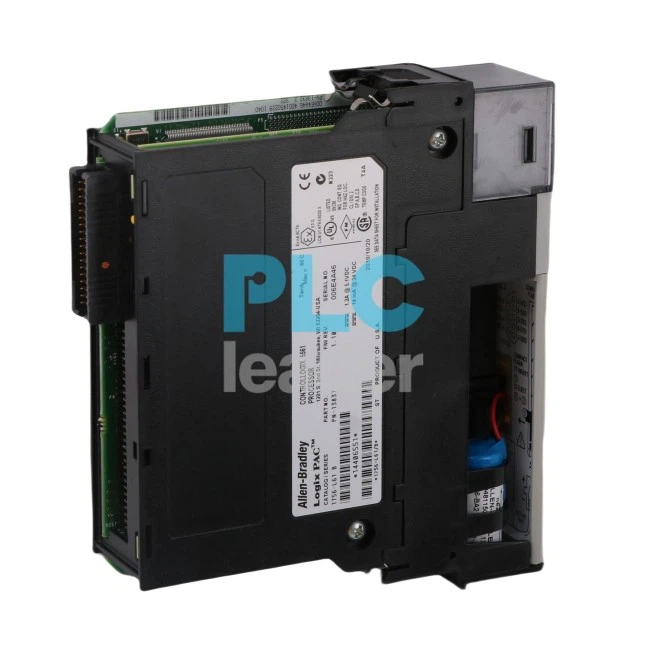

The 1756-L61 ControlLogix Controller by Allen Bradley / Rockwell Automation is a high-performance programmable logic controller (PLC) designed for complex industrial automation systems. Featuring 2 MB of user memory, this controller is ideal for applications requiring fast, reliable, and scalable control solutions. Its modular architecture, robust processing capabilities, and extensive connectivity make it suitable for a wide range of industries, from manufacturing and energy to transportation and infrastructure.

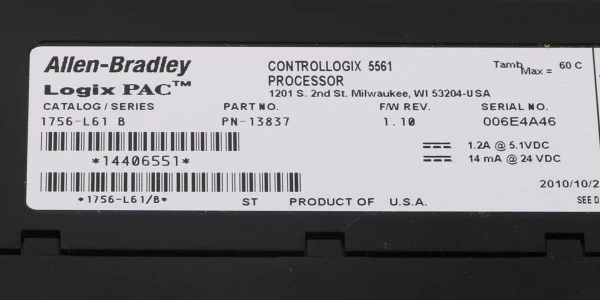

Technical specifications for 1756-L61
| Brand | Allen-Bradley | Maximum Analog I-O | 4,000 |
| Part Number/Catalog No. | 1756-L61 | Program Scan Time | 0.08 milliseconds |
| Series | ControlLogix | User Memory | 2MB |
| Module Type | Processor Module | Backplane Current (5Volts DC) | 1.2 Amps |
| Fixed Memory | 2, 4, or 8 MB | Backplane Current (24 Volts DC) | 14 milliamps |
| Nonvolatile Memory | Compact Flash Card 1784-CF128 | Weight | 0.71 pounds (0.32 kilograms) |
| Maximum I-O | 128,000 | Vibration | 10-500 Hertz |
| Communication | RS-232 serial port | UPC | 1.06126E+13 |
| RS232 Protocols | ASCII DF1 full/half-duplex DF1 radio modem DH-485 Modbus via logic | Relative Humidity | 5-95 percent |
Description
The Allen-Bradley 1756-L61 is a ControlLogix controller. It has 2 MB user memory and 478 kb I/O memory available, with an optional non-volatile storage memory of 128 MB with the use of 1784-CF128 CompactFlash memory card. It is a chassis-based controller and can be placed in any available slot of the 1756 ControlLogix chassis. Compatible chassis for this controller are 1756-A4, 1756-A7, 1756-A10, 1756-A13, and the 1756-A17. It has an open-style type of enclosure and can support up to a maximum of 250 controller connections. It also has a built-in RS-232 serial communication port. Supported protocols of the RS232 port are DF1 full/half-duplex, ASCII, DF1 radio modem, Modbus via logic, and DH-485.
It has a maximum digital I/O of 128,000, a maximum analog I/O of 4,000, and a maximum total I/O of 128,000. Controller tasks of the 1756-L61 include 32 tasks, 100 programs per task, and event tasks: all event triggers. The 1756-L61 has various communication options, such as ControlNet, Data Highway Plus, EtherNet/IP, DeviceNet, SynchLink, Remote I/O, and third-party process and device networks. The current draw of the 1756-L61 controller is 1200 mA at 5.1V DC and 14 mA at 24V DC. Power dissipation is at 3.5 W and thermal dissipation is 11.9 BTU/hr. It also has a continuous isolation voltage of 30V and has been tested at 720V DC for 60 s. It has an operating temperature of 0 to 60 Degrees Celsius, a storage temperature of -40 to 85 Degrees Celsius, and a maximum surrounding air temperature of 60 Degrees Celsius. Relative humidity is between 5% to 95% (noncondensing) and its vibration is 2 g at 10 to 500 Hz, with operating and non-operating shocks of 30 g and 50 g respectively.
Frequently Asked Questions
Q1: What is the primary use of the 1756-L61 controller?
A: It is used for managing and automating industrial processes, machinery, and systems requiring high-speed and reliable control.
Q2: Can the controller support distributed I/O systems?
A: Yes, the 1756-L61 supports distributed I/O through ControlNet, Ethernet/IP, and DeviceNet communication protocols.
Q3: How can the controller be programmed?
A: It is programmed using Rockwell Automation's Studio 5000 Logix Designer software.
Q4: What is the maximum number of I/O modules it can support?
A: The number of I/O modules depends on the system configuration and chassis size, with support for multiple racks.
Q5: Is the 1756-L61 suitable for safety-critical applications?
A: While the 1756-L61 is robust, safety-critical applications typically require specialized safety-certified controllers like the GuardLogix series.
