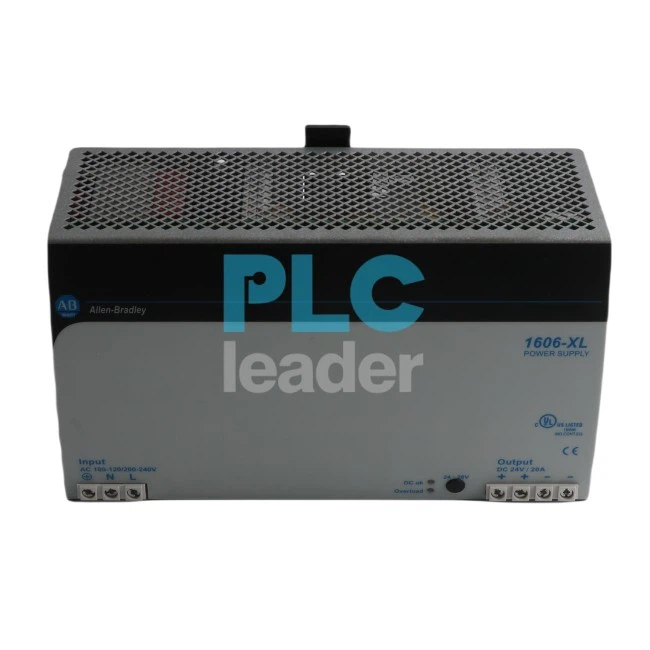

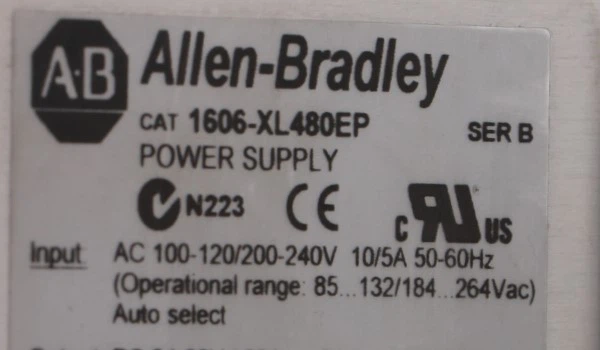

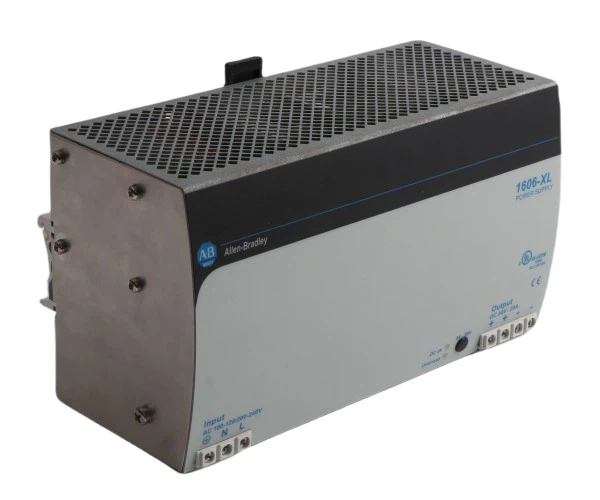

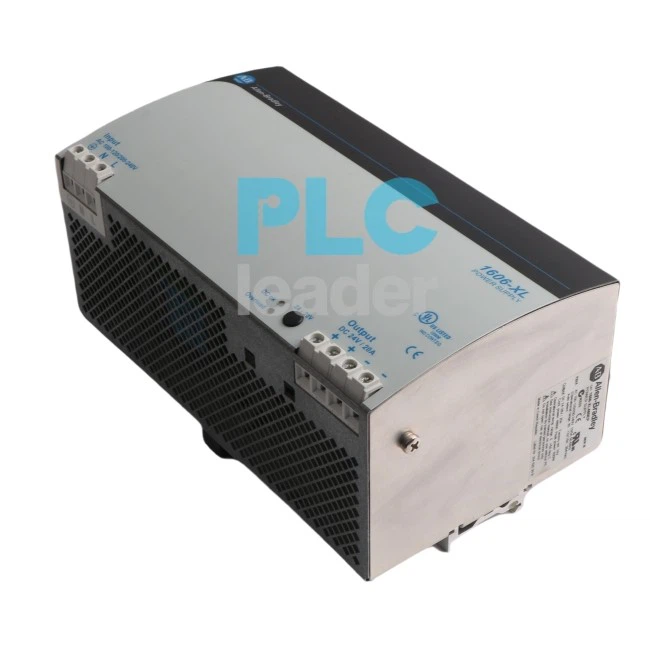

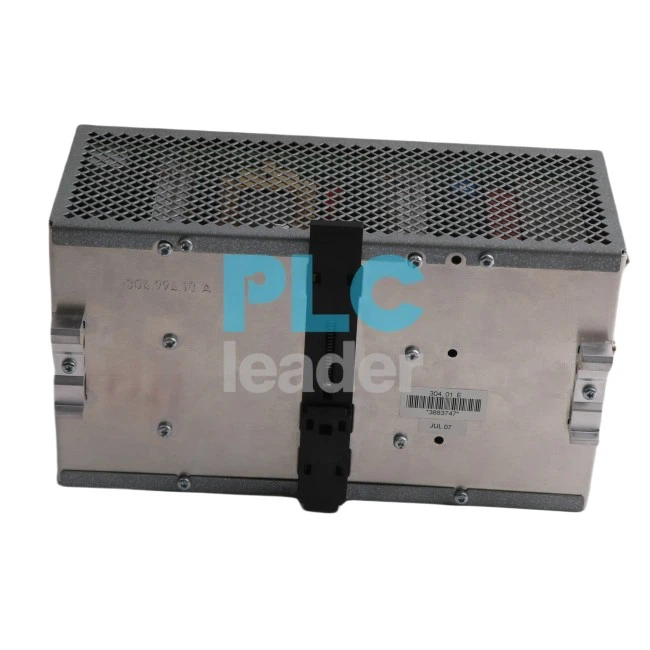

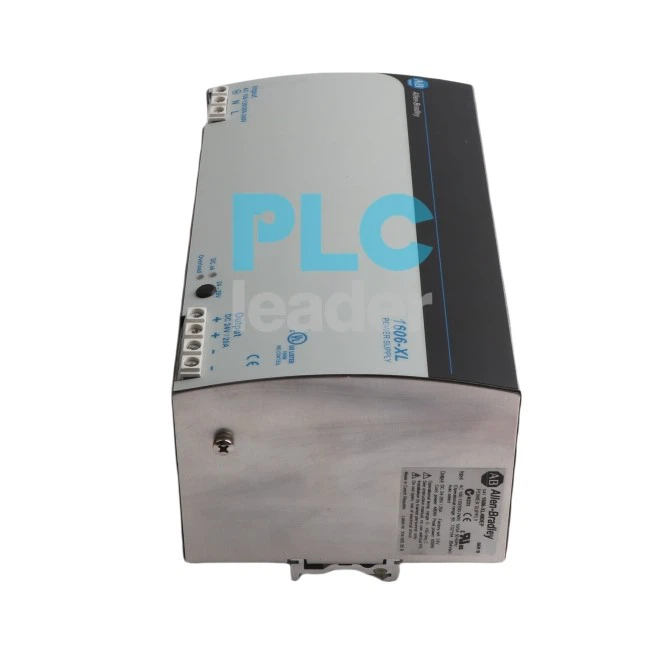

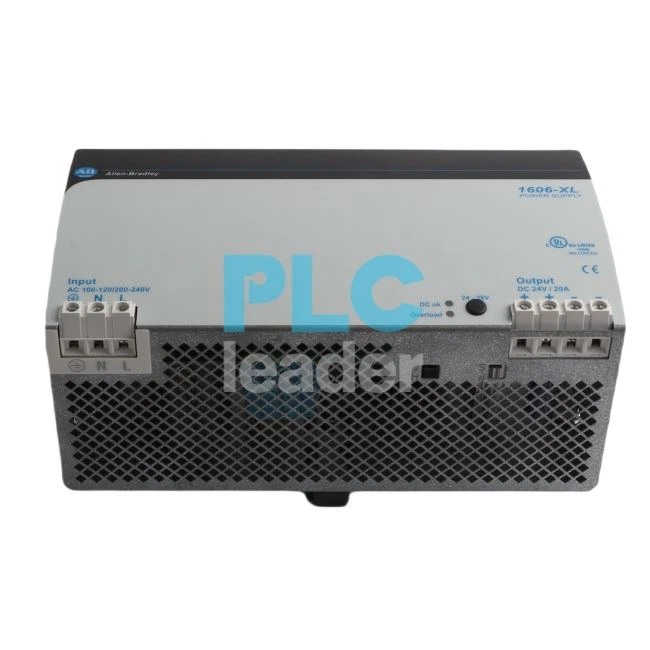

Allen-Bradley 1606-XL480EP AC/DC Power Supply 120/230VAC/24-28VDC 480W, DINRail

Description





The 1606-XL480EP standard power supply module has been manufactured as part of the Allen-Bradley Bulletin 1606-XL Standard Switched Mode Power Supply series. This power supply module operates on an input voltage of 100 to 240 Volts AC or 24 to 28 Volts DC, an input power rating of 480 Watts, and a current rating of 20 Amps. It comes with an input frequency of 50 to 60 Hertz, a minimum frequency rating of 47 Hertz, and a maximum frequency rating of 63 Hertz. It has a nominal inrush current of 5 Amps and a maximum inrush current of 18 Amps. Other notable specifications of the 1606-XL480EP power supply module include LED indicator lights, a minimum hold-up time of 30 milliseconds, an output current of 20 Amps at 24 Volts DC, and 18 Amps at 28 Volts DC. It also has 519,000 hours of minimum time before failure (MTBF). It supports the NEMA IP 20 rating and DIN-35 rail mount mounting type and a minimum electrical efficiency of 90.5%.



>

sales7@apterpower.com >>

Technical specifications



Brand：606 Switched Mode Power Supplies
Part Number：1606-XL480EP
Product Category：Standard Pwer Supply
Bulletin：1606-XL
Input Voltage：100 – 240 VAC/24 – 28 VDC
Input Power：480 Watts
Input Current：20 Amperes
Frequency Range：47 - 63 Hertz
Indicator Type：LED
MTBF：519000 Hours
UPC：10662073044007

>

+8618030175807>>

1606-XL480EP is a 480W single-phase input/24V DC output industrial power supply launched by Rockwell Automation. It is designed for harsh industrial environments and has high efficiency, high reliability and intelligent monitoring functions. It is suitable for automation control, mechanical equipment, energy systems and other fields.

High-efficiency power conversion and stable output
Adopting active PFC (power factor correction) technology, the efficiency is up to 94%, supporting a wide range of input voltage (85-264V AC), outputting 24V DC/20A, and having low ripple noise characteristics to ensure stable operation of sensitive electronic equipment, especially suitable for the power supply needs of high-precision control systems such as PLC and servo drives.

Intelligent protection and diagnostic functions
Integrated overvoltage, overcurrent, short circuit and overheating multiple protection mechanisms, support output voltage fine-tuning (±10%), built-in LED status indicator and remote monitoring interface (fault alarm output through signal contact), can monitor the health of the power supply in real time and reduce the risk of unexpected downtime.

Industrial-grade durable design
UL/CE/cUL certified, adaptable to -25℃~70℃ wide temperature environment, anti-vibration performance complies with IEC 60068-2-6 standard, fanless design avoids dust accumulation, modular structure supports DIN rail installation, meeting the long-term stable operation requirements of harsh industrial scenarios.

keywords: 1606 xl480ep;Allen-Bradley 1606-XL480EP;1606-XL480EP pdf;1606-XL480EP datasheet;1606-XL480EP manual;1606-XL480EP sell;1606-XL480EP new;1606-XL480EP Allen-Bradley
