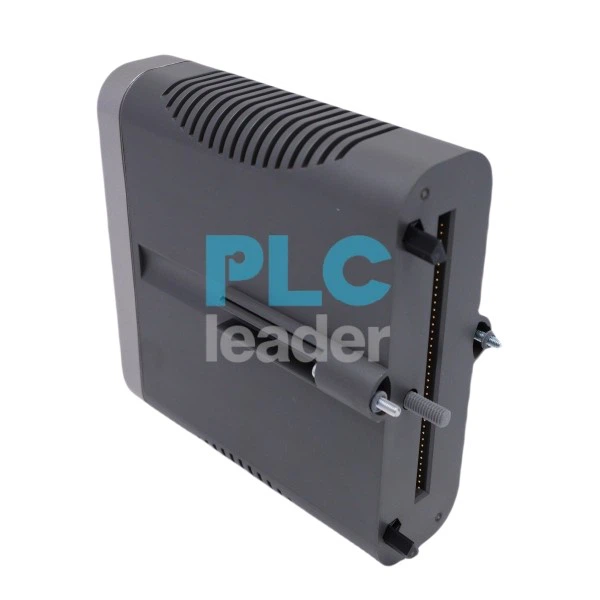

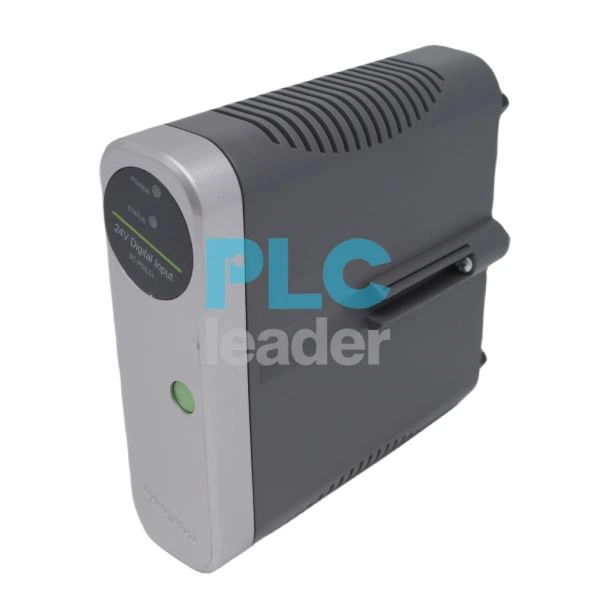

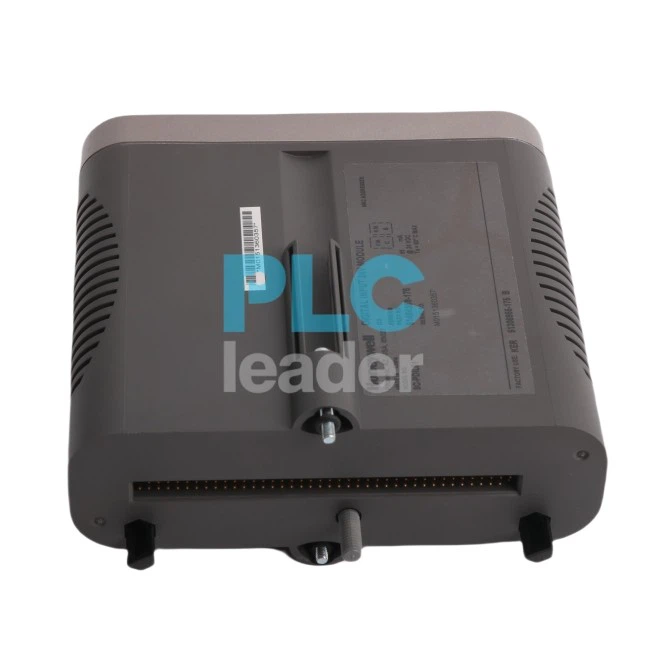

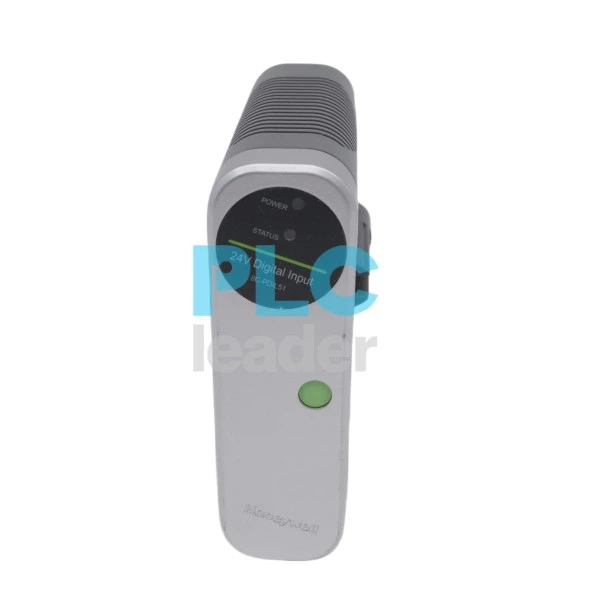

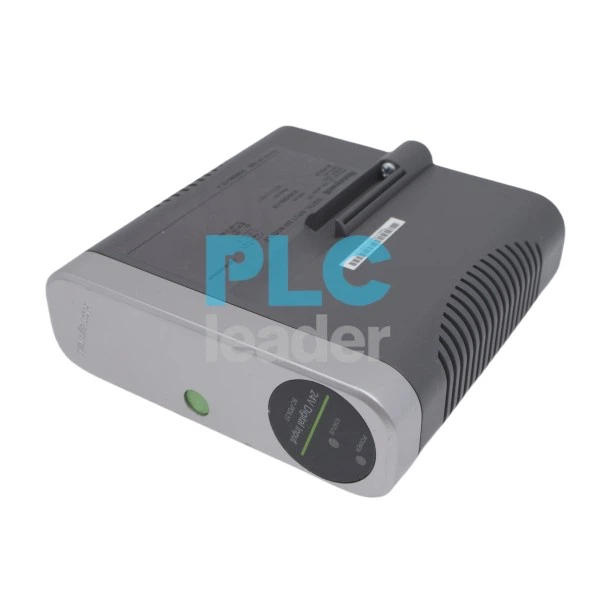

Product overview
The 8C-PDIL51 51454359-175 is a high-performance digital input module engineered for precise data acquisition and integration within industrial automation systems. As part of Honeywell's renowned C300 Process Controller family, it plays a vital role in collecting field signal inputs and securely transmitting them to the control system. Designed for reliability, noise immunity, and adaptability, the module supports industrial applications requiring stable, real-time signal processing under demanding environmental conditions.
This module is tailored to handle a wide range of discrete signals, such as push buttons, limit switches, and sensor outputs, providing operators with critical feedback for automated decision-making. With robust architecture, high-speed response, and modularity, the 8C-PDIL51 contributes to safer, more efficient, and cost-effective plant operations.
Functional Description
The 8C-PDIL51 functions as a digital input interface between field devices and the central controller. Each of its 32 channels can independently detect the ON/OFF status of connected discrete devices. Using optical isolation technology, it prevents electrical noise and voltage spikes from disrupting signal integrity, ensuring the central processor receives clean, accurate input data.
Signals acquired from the module are used in process control logic for applications such as valve positioning, interlock management, alarm triggering, and machine status monitoring. Its compact form factor allows easy integration into distributed control systems (DCS), especially in large-scale or modularized architectures.
Features
✅ 32 Individually Isolated Channels
Each input is electrically isolated to prevent signal cross-talk, improving system reliability.
✅ High Noise Immunity
Advanced filtering and optical isolation protect against electromagnetic interference (EMI).
✅ Fast Update Rate
With a typical response time below 2 ms, the module is ideal for high-speed control tasks.
✅ Hot-Swappable Design
Supports replacement without shutting down the system, reducing maintenance downtime.
✅ LED Status Indicators
Each channel includes a diagnostic LED to indicate input state, facilitating troubleshooting.
✅ Robust Diagnostics
Supports system health monitoring, fault detection, and channel diagnostics through the controller.
✅ Modular Scalability
Compatible with Honeywell's modular system architecture, enabling flexible expansion.
Special Characteristics
- Low Signal Threshold: Compatible with a wide range of input devices (e.g., dry contacts, proximity sensors, etc.) due to its broad voltage sensing range.
- Module-Level Diagnostics: Continuous self-check functions notify the control system of input faults or anomalies.
- Environmentally Tolerant: Operates across a wide temperature and humidity range, suitable for both climate-controlled and semi-harsh conditions.
- Secure Termination Blocks: Field wiring is protected with locking mechanisms, vibration-resistant screw terminals, and labeling for easy maintenance.
- Backplane Communication: Data from the module is sent to the controller via high-speed backplane bus, supporting real-time control cycles.
