Field termination assembly module FC-TSDI-1624 is the interface between system interconnection cable SICC-0001/Lx and the external field wiring (screw terminals). The SICC cable interconnects the SICconnector on the FTA module and a (redundant pair of) SDI-1624 modules.The FC-TSDI-1624 module can interface with digital input signals from 'Class I, Division 2 HazardousLocations'.The FC-TSDI-1624 module can handle short circuits to 0 Volt of (INx+ or INx) field wires because the PTC(Positive Temperature Coefficient) resistor between the +24Vout of the SDI-1624 modules and the'+24Vout' connection (INx+) of each input channel limits the current. This prevents the loss of all 16channels (+24Vout fails) in the case of a single short circuit to 0 Volt of a connected field wire.The FTA module has a universal snap-in provision for standard DIN EN rails and screw terminals forconnecting field wiring.
Field termination assembly module FC-TSDI-1624 is the interface between system interconnection cable SICC-0001/Lx and the external field wiring (screw terminals). It can be used for interfacing digital inputsignals from Class I, Division 2 Hazardous Locations.Sixteen channels (separated into two groups of eight channels with a 250 mA fuse in the common +) canbe connected to the FC-TSDI-1624 module via a system interconnection cable (SICC-0001/Lx). This cable isplugged into the SIC connector on the FTA module, and connects to a (redundant pair of) SDI-1624 module(s).The FTA module has a universal snap-in provision for standard DIN EN rails, and screw terminals forconnecting field wiring.
Products Description

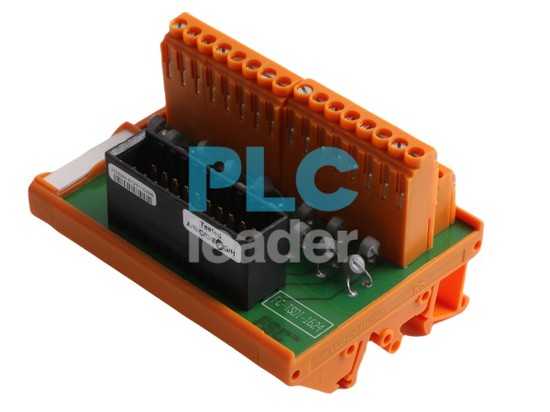

The Honeywell FC-TSDI-1624 is a Digital Input Field Termination Assembly (FTA) designed for the control systems in industrial automation environments. It enables seamless integration with Honeywell's control modules, providing reliable data acquisition from digital input devices. This assembly simplifies wiring connections between field instruments and control systems, ensuring high accuracy and stability in industrial processes.
Specifications:
Model: FC-TSDI-1624
Type: Digital Input Field Termination Assembly
Input Channels: 16 digital input channels
Voltage Range: 24V DC nominal input
Communication Interface: RS485
Mounting: Panel mountable
Compatibility: Works with Honeywell TDC3000 and Experion PKS systems
Temperature Range: -40°C to 70°C operating temperature
Isolation: Channel-to-channel isolation
Applications:
Oil and Gas: Monitoring and control of drilling operations and refineries.
Manufacturing: Automation in production lines and quality control systems.
Power Generation: Controls in thermal, nuclear, and renewable energy plants.
Chemical Processing: Ensures the safe and precise monitoring of chemical reactions and processes.
Features:
Efficient Design: Compact design allowing space-saving installation in industrial control systems.
Reliability: High levels of noise immunity and isolation ensure the integrity of data signals.
Ease of Use: Quick and simple field wiring termination, reducing installation time.
Compatibility: Fully compatible with Honeywell's legacy and modern control systems, offering flexibility in system upgrades.
Durability: Designed to operate in harsh industrial environments with wide temperature ranges and robust construction.
