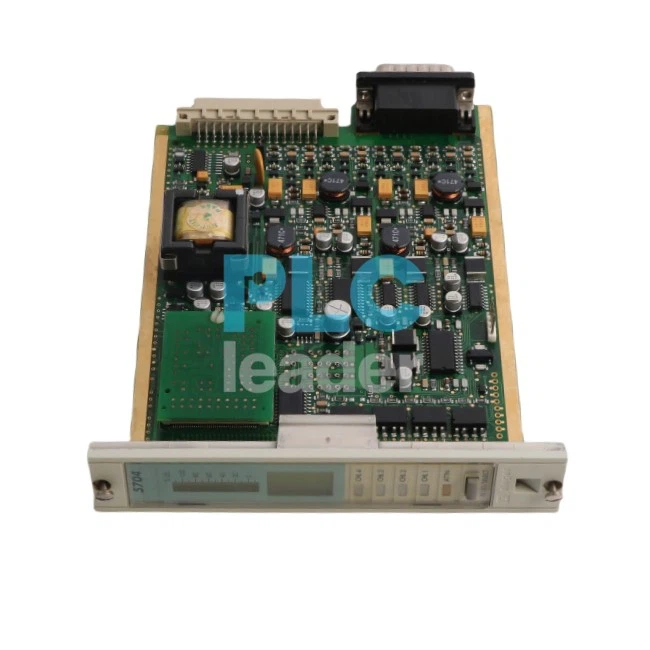

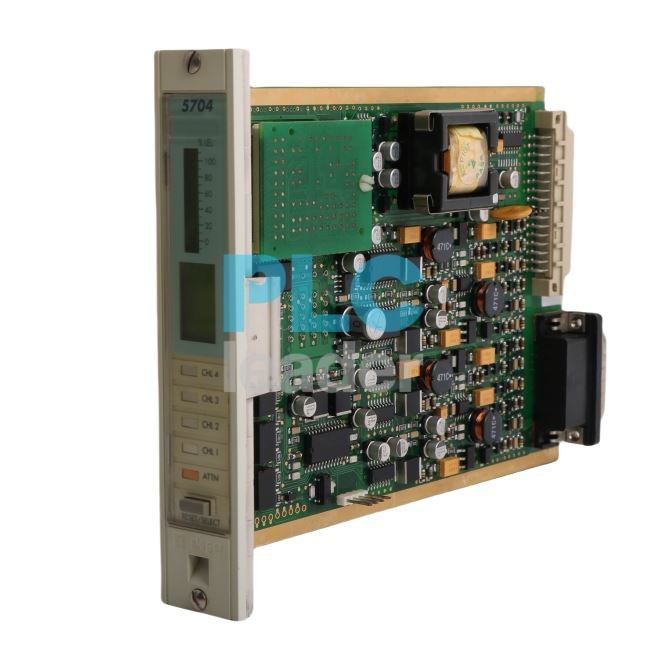

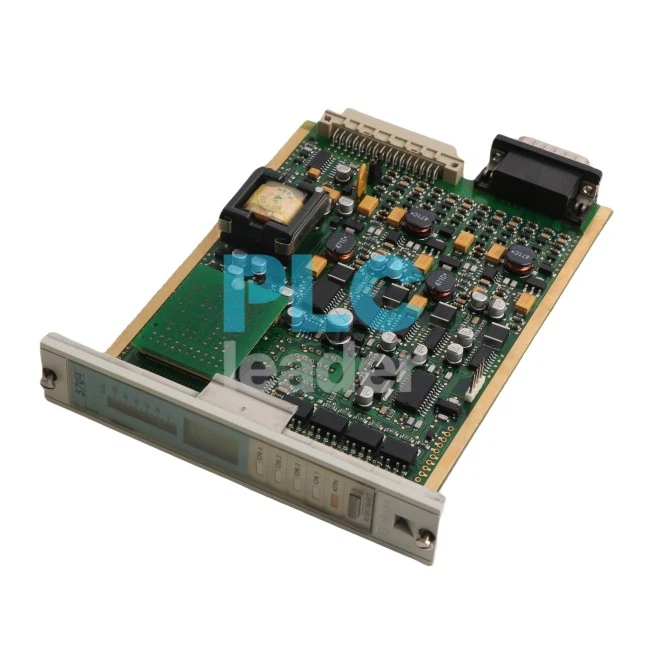

The Honeywell 05704-A-0144 Four Channel Control Card is a high-performance control module designed for industrial automation systems. With four independent channels, this control card is engineered for reliable operation in critical applications requiring precise control and monitoring. Its robust design ensures compatibility with Honeywell's advanced Distributed Control Systems (DCS), providing seamless integration and optimal performance.
Specifications
Manufacturer : Honeywell
Product No. : 05704-A-0144
Product type : Four Channel Control Card Catalytic Input
Power Consumption: 12.8W (maximum at 200mA sensor current). 8.5W (typical).
Drive: Constant Current.
Initial Accuracy: ±1%.
Current Adjustment: Electronic in 1mA stepsfrom 90 to 315mA.
Maximum Drive Voltage: 10V
Protection: Protected against short circuit and open circuit.
Maximum Line Resistance: 40 ohms (including sensor) at 200mA.
Full Scale Signal Range: 15mV to 300mV
Applications
The Honeywell 05704-A-0144 is widely used in industries where precision control is critical, including:
- Oil and Gas: For managing drilling operations, pipeline control, and refinery processes.
- Power Generation: Control systems for turbines, boilers, and auxiliary equipment.
- Chemical Processing: Monitoring and controlling chemical reactions and flow processes.
- Manufacturing: For automation in assembly lines, robotics, and material handling.
- Water and Wastewater Treatment: Managing pumps, valves, and filtration systems.
Related words: 05704 a 0144;Honeywell 05704-A-0144;05704-A-0144 pdf;manual 05704-A-0144;05704-A-0144 datasheet
Frequently Asked Questions (FAQ)
1. What types of inputs and outputs does the card support?
The Honeywell 05704-A-0144 supports both digital and analog inputs/outputs, making it versatile for various control applications.
2. Is the card compatible with third-party systems?
While primarily designed for Honeywell systems, the card may work with third-party systems depending on the communication protocol and integration capabilities.
3. What maintenance is required for the control card?
Regular inspection for dust accumulation and ensuring secure connections are the primary maintenance tasks. Built-in diagnostics also aid in predictive maintenance.
4. Can the card operate in hazardous environments?
Yes, it is designed to function reliably in industrial environments, including those with high temperatures, humidity, and vibration.
