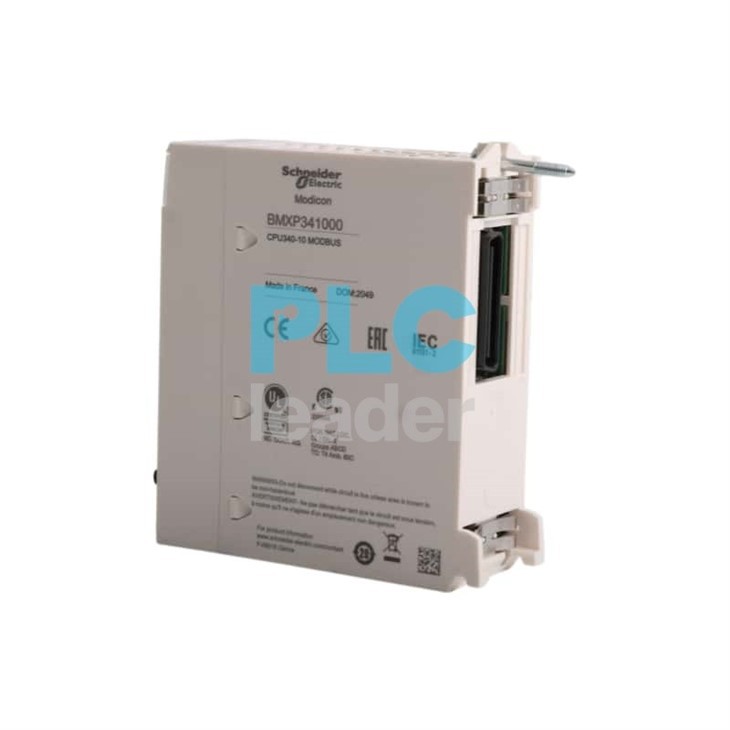

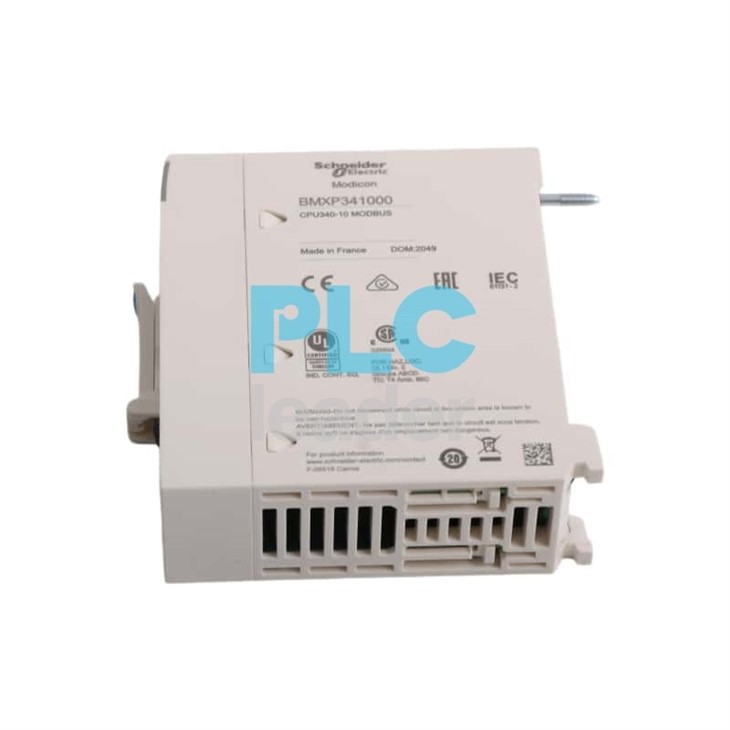

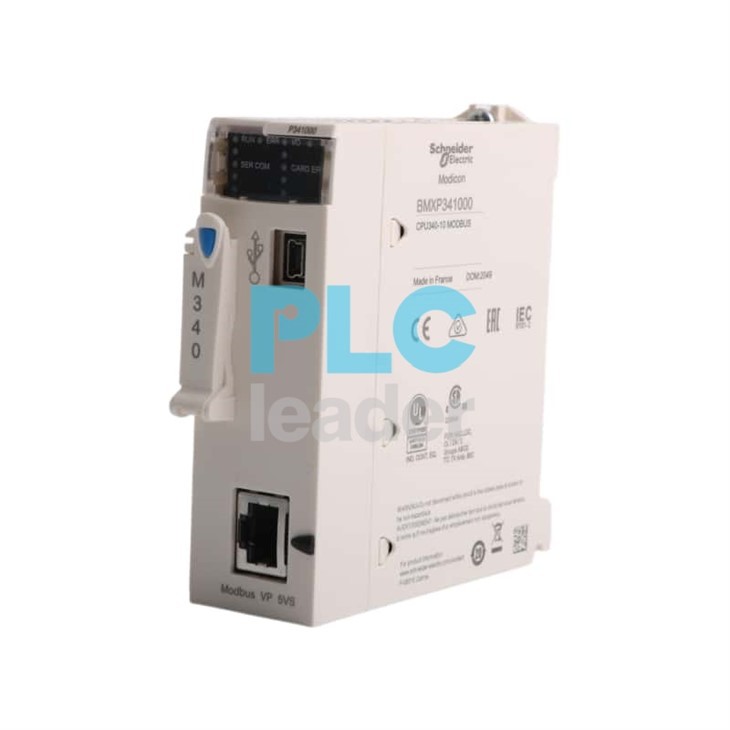

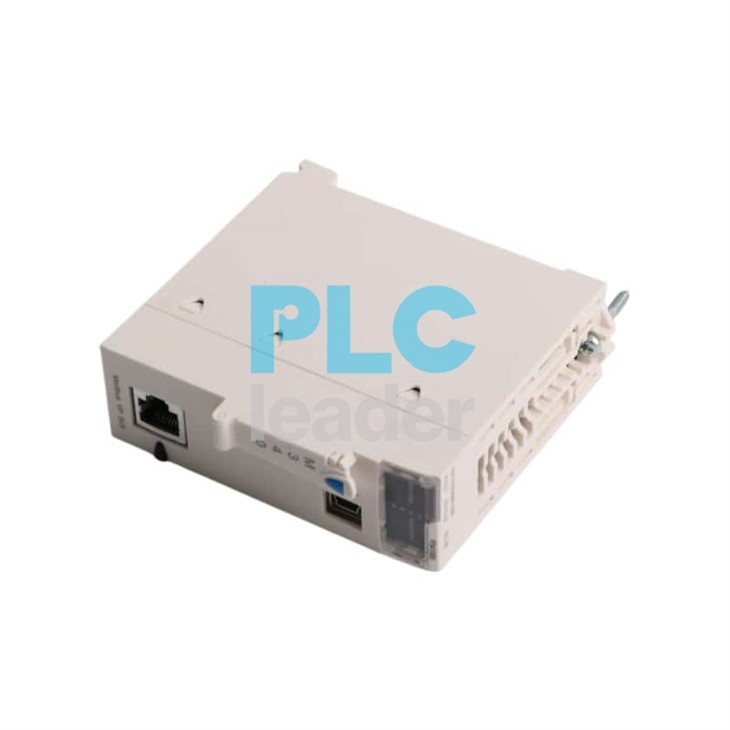

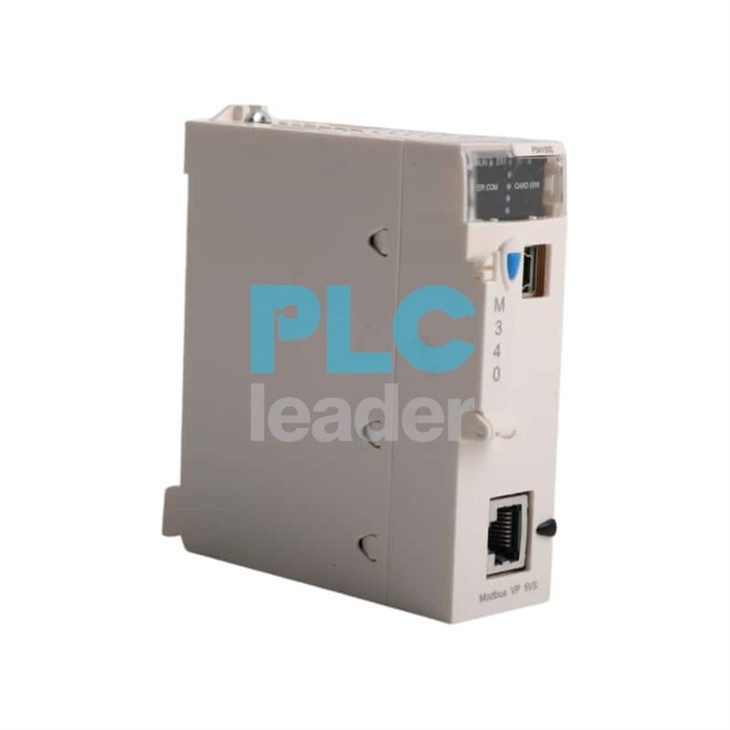

Schneider Electric BMXP341000 Modbus Processor Module M340

The Schneider Electric BMXP341000 Modbus Processor Module (M340 series) is a powerful and compact control processor designed for industrial automation systems requiring flexible I/O management and reliable Modbus communication. It is engineered to serve as the central processing unit in M340 PLC architectures, providing stable control performance for a wide range of machine and process applications.Operating on a 240 V power supply, the module is built to support efficient system integration within industrial control cabinets. It offers a scalable configuration capable of handling up to 20 channels, with a maximum capacity of 512 discrete I/O points and 128 analog I/O points, making it suitable for both small and large-scale automation systems.The BMXP341000 supports Modbus communication, ensuring seamless data exchange with field devices, remote I/O modules, and supervisory control systems. Its architecture allows configuration across 2 racks with up to 11 slots, providing flexibility for system expansion and customization based on application requirements.

■Manager: Vicky
■Email: sales7@apterpower.com
■Call or Whatsapp: +86 18030175807

Model: BMXP341000
Product Series: Modicon M340
Product Type: Processor / CPU Module
Discrete I/O processor capacity: 512 I/O single-rack configuration
Number of application specific channel: 20
Current consumption: 72 mA 24 V DC
Supply: Internal power supply via rack
Ambient air temperature for operation: 32…140 °F (0…60 °C)
Relative humidity: 10…95 % without condensation
Number of devices per segment: 0…32character mode) 0…32Modbus)
Number of devices: 2 point-to-point character mode;2 point-to-point Modbus
Requests:

• 1 K data bytes per request character mode
• 252 data bytes per RTU request Modbus
• 504 data bytes per ASCII request Modbus

Power Supply: 24 V DC (via rack backplane)
Memory Capacity: 2048 kB RAM (program + data storage)

• High-Performance Processing Core:The BMXP341000 features a high-performance processing core that ensures the rapid execution of complex automation logic and real-time control tasks.

• Easy System Integration:Designed to work seamlessly with Modicon M340 I/O modules and the broader Schneider electric automation ecosystem.
• Flexible System Scalability:Providing support for both single and multi-rack architectures, the BMXP341000 serves as a flexible foundation for highly expandable automation systems.
• Advanced Modbus Communication:The BMXP341000 includes advanced Modbus communication capabilities, enabling reliable integration with various industrial networks and third-party devices.
• Large Memory Capacity:With its 2048 kB internal memory, the BMXP341000 easily supports sophisticated control programs and heavy data handling requirements.
• Multi-Task Execution:Capable of managing cyclic, fast, and event-driven tasks to provide precise and deterministic process control.
• Robust Industrial Design:Engineered for continuous operation, this module maintains stability within standard industrial environments.
