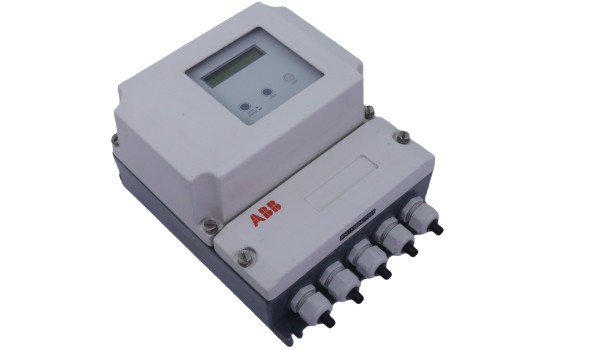

The converter processes the flowrate proportional signals from the electromagnetic flowmeter primary into frequency proportional pulse signals (scaled or unscaled output) and into a current output.
Note:In every installation it is important to assure that only a flowmeter primary designed for pulsed DC magnetic field excitation is connected to the converter 50XM2000. The flowmeter primaries with the following Model Numbers are included in the pulsed DC family: 10DX2111, 10DX2112, DM_2, 10DX3111, DM_4, (10D31XY)10DX3112. The Model Numbers are recorded on the Instrument Tag mounted on the connection box of the flowmeter primary.
Phone Number
+8618030175807
Technical Specifications
| Parameter | Details |

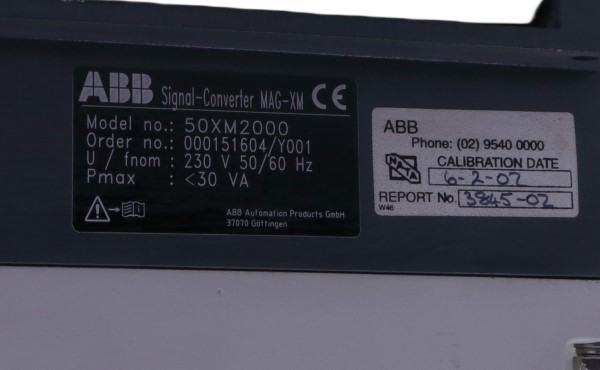

| Model | MAG-XM 50XM2000 |
| Type | Electromagnetic Flow Converter |
| Input | Magnetic sensor signals |
| Output | 4–20 mA, pulse/frequency, HART, Modbus, Profibus |
| Power Supply | 85–265 VAC or 18–36 VDC |
| Accuracy | ±0.2% of reading |
| Display | Backlit LCD, multilingual, with status indicators |
| Enclosure Rating | IP67 / NEMA 4X |
| Ambient Temperature | -20°C to +60°C |
Assembly and Installation
1.Inspecting the Converter
Before installation check the converter for damage due to possible mishandling during shipping. All claims for damage are to be made promptly to the shipper before installation.
2.Converter Installation
The installation site for the converter must be essentially free of vibration. The specified temperature limits of -25 °C and +60 °C must be observed. Consideration must be given to the max. signal cable length between the flowmeter primary and the converter which is limited to 200 m. For agency approved EMF designs (Volume Flow Integrators) the max. cable length is 100 m. In addition the installation site of the converter should not be exposed to direct sunlight. If the ambient temperature limit of +60 °C is exceeded the readability of the LC-Display is affected. It will no longer to read the process information. If it in not possible to avoid direct sunlight, a sun shield should be installed.
Related words：mag xm;50xm2000;abb 50xm2000;abb mag xm;abb mag xm manual;mag xm 50xm2000;MAG-XM datasheet
