Product Description

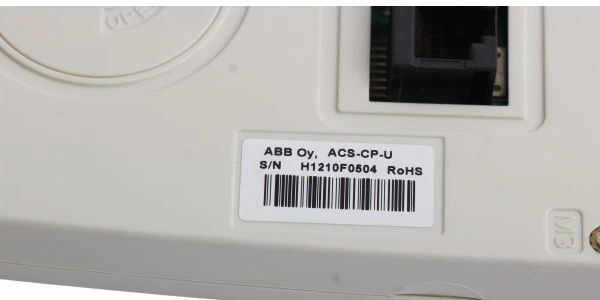

The ACS-CP-U control panel is a compact and robust device that connects seamlessly to ABB drive systems. Its intuitive design simplifies navigation, making it accessible for users with varying technical expertise. This panel enables users to manage drive parameters efficiently, diagnose issues, and monitor system performance in real-time.
Specifications
|
Parameter |
Details |
|
Model Number |
ACS-CP-U (3AUA0000050961) |
|
Display |
LCD with backlight |
|
Connectivity |
USB and ABB drive interface |
|
Power Supply |
Powered through connected drives |
|
Temperature Range |
-10°C to +50°C |
|
Languages |
Multi-language support |
Installation instruction
1. Drill holes to the installation plate. The dimensions are shown on the next page.
2. Insert the lead-through rubber grommet to the mounting plate hole.
3. Fasten the control panel holder with the screws included in the kit. Tightening torque: 1.2 N·m.
4. Ground the cable lug of the grounding cable with a fastening screw to an unpainted point.
5. Insert the plug to connector X7 in the control unit.
Installation and Operation
Installation: The ACS-CP-U connects directly to the designated port on the ABB drive. Its lightweight design ensures hassle-free installation.
Operation: Navigate through the menu using the directional keys and select options with the confirm button. Real-time data is displayed on the LCD screen for immediate action.
FAQs
1. Is the ACS-CP-U control panel compatible with all ABB drives?
The ACS-CP-U is compatible with a wide range of ABB drives. Consult your drive's user manual to ensure compatibility.
2. Can the panel store multiple drive configurations?
Yes, it supports parameter copying, making it easy to replicate configurations across drives.
3. How do I update the firmware on the control panel?
The panel includes a USB interface for simple firmware updates. Instructions are available in the user manual.
4. What happens if the panel loses power during operation?
The panel is powered by the connected drive and resumes operation as soon as power is restored.
