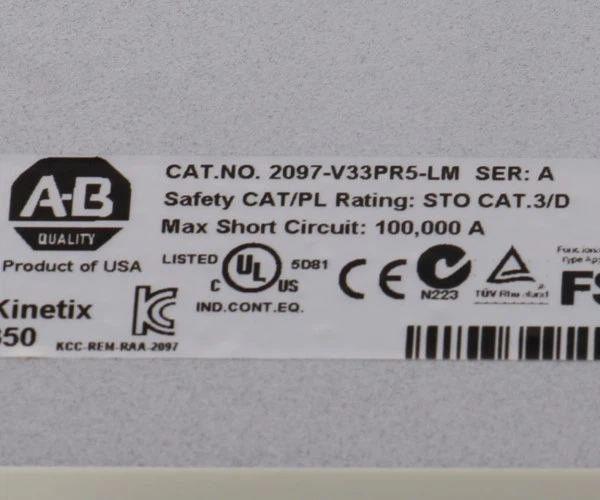

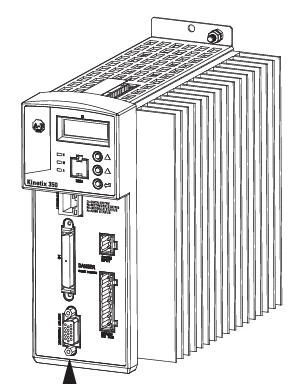

The Allen-Bradley 2097-V33PR5-LM belongs to the Kinetix 350 Product family. This drive allows motion control implementation, applicable in a wide variety of industries, particularly in the manufacturing and production industry.
This Kinetix Drive features a continuous output current of 11.3 A and power output of 2.0kW. It supports a variety of Voltage class such as 100V, 200V and 400V voltage classes. Specifically, this drive requires a supply input voltage of 80-132VAC, 1-phase, 80-264VAC, 1-Phase and 80-264VAC, 3-Phase.
This drive has an embedded single Ethernet I/P communication port, which allows the drive to implement motion control tasks over Ethernet I/P. This same communication port supports simultaneous communication with Human Machine Interface (HMI) devices such aa Allen-Bradley PanelView operator terminals and Remote I/O devices such as 1734 Point I/O modules. It allows simplified communication protocol wiring and support for modern communication method.
Phone Number
Technical specifications
| Input Voltage | 80-132VAC, 1-Phase 80-264VAC, 1-Phase 80-264VAC, 3-Phase |
| Part Number/Catalog No. | 2097-V33PR5-LM |
| Product Bulletin | 2097 Kinetix 300 Drives |
| Input Frequency | 48…62 Hz |
| Main AC input current, Nom (rms) 120/240V input, single-phase | 15.0 A |
| Max inrush (0-pk) 120/240V input | 1.15 A |
| Nom (rms) 240V input, three-phase | 8.7 A |
| Max inrush (0-pk) 240V input | 2.3 A |
| Control power back-up input voltage | 20…26V DC |
| Control power back-up input current, nominal | 500 mA |
| Control power back-up input current, max. inrush | 30 A |
| Continuous output current (rms) | 8.0 A |
| Continuous output current (0-pk) | 11.3 A |
| Peak output current (rms) | 24.0 A |
| Peak output current (0-pk) | 33.9 A |
keywords: 2097 v33pr5 lm;Allen-Bradley 2097-V33PR5-LM;2097-V33PR5-LM pdf;2097-V33PR5-LM datasheet;2097-V33PR5-LM manual;2097-V33PR5-LM sell;2097-V33PR5-LM new;2097-V33PR5-LM Allen-Bradley
Application Areas
The Allen-Bradley 2097-V33PR5-LM is a high-performance model of the Kinetix 5300 series servo drive, designed for precision motion control. The drive integrates the safe torque off (STO) function, supports 380-480V AC three-phase power input, and has a peak output current of 33A, which is suitable for automation equipment with high dynamic response. Its modular design supports common DC bus configuration, significantly reducing energy consumption.
1. High-end CNC machine tool spindle drive
In the five-axis machining center, the drive can achieve an angle positioning accuracy of 0.001°, and the speed fluctuation is controlled at ±0.02% when used with a third-party encoder. A case study of a certain aviation part processing shows that the surface roughness is improved by 40% compared with the traditional solution.
2. High-speed synchronous control of packaging machinery
When driving a rotary labeling machine, the electronic cam function is used to achieve a production cycle of 300 packs/minute, and the label position error is less than ±0.5mm. Its dynamic inertia identification function can automatically compensate for the impact of changes in coil diameter.
3. Heavy-load industrial robot joint control
Provides joint power for 50kg load six-axis robots, achieving 0.1mm repeatability in arc welding applications. The unique vibration suppression algorithm reduces motion tremor by 60% and improves weld quality.
