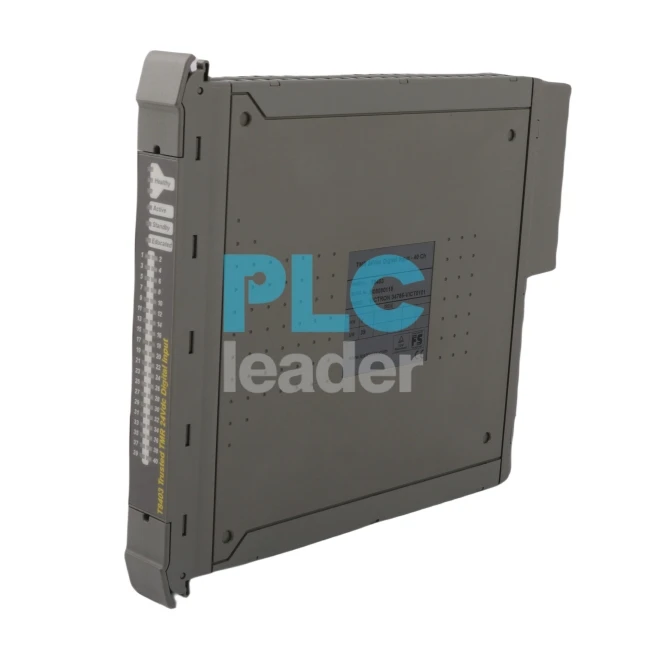

ICS Triplex T8403 Trusted TMR 24Vdc Digital Input Module

ICS Triplex T8403 Trusted TMR 24Vdc Digital Input Module



The T8403 module integrates seamlessly into the Trusted system, providing high-integrity digital input signal processing. With its triple modular redundancy architecture, the module continually checks for errors, ensuring fault tolerance and high availability. This robust design makes it ideal for safety-critical processes such as those found in oil and gas, power generation, and chemical industries.

The module supports up to 40 digital inputs, operating at a nominal voltage of 24Vdc. It is engineered to detect and isolate faults without compromising system functionality, enabling uninterrupted operation and easy fault diagnostics.

Specifications



Model Number: T8403

Input Channels: 40

Nominal Voltage: 24Vdc

Input Voltage Range: 18-32Vdc

Input Isolation: 2500V

Environmental Conditions:

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% non-condensing

Certifications: SIL3 (Safety Integrity Level 3), IEC 61508, CE, ATEX

The Trusted® TMR 24 Vdc Digital Input module interfaces to 40 field inputdevices. Fault tolerance is achieved through a Triple Modular Redundant(TMR) architecture within the module for each of the 40 input channels.Each field input is triplicated and the input voltage is measured using asigma-delta input circuit. The resulting field voltage measurement iscompared to user configurable threshold voltages to determine the reportedfield input state. When a line-monitoring device is installed at the field switch,the module can detect open and short circuit field cables. Line monitoringfunctions are independently configured for each input channel. Thetriplicated voltage measurement, coupled with onboard diagnostic testing,provides comprehensive fault detection and tolerance.

The module provides onboard Sequence of Events (SOE) reporting with aresolution of 1 ms. A change of state triggers an SOE entry. States aredetermined by voltage thresholds that can be configured on a per channelbasis.

• 40 Triple Modular Redundant (TMR) input channels per module.

• Comprehensive, automatic diagnostics and self-test.

• Selectable line monitoring per channel to detect open circuit and shortcircuit field wiring faults.

• 2500 V impulse withstand opto/galvanic isolation barrier.

• Onboard Sequence of Events (SOE) reporting with 1 ms resolution.

• Module can be hot-replaced online using dedicated Companion(adjacent) Slot or SmartSlot (one spare slot for many modules)configurations.

• Front panel input status LEDs for each channel indicate input statusand field wiring faults.

• Front panel module status LEDs indicate module health andoperational mode (Active, Standby, Educated).

• TϋV Certified IEC 61508 SIL 3.
