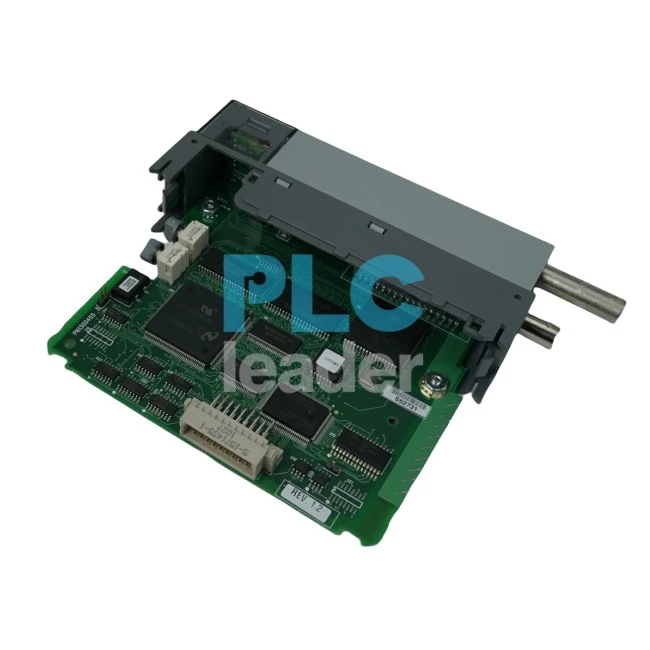

Allen-Bradley 1747-SCNR SLC 500 ControlNet Scanner

Description



The Allen-Bradley 1747-SCNR SLC ControlNet Scanner Module acts as an interface between the ControlNet device and the SLC processor. This module communicates with the ControlNet device over the network. This module can communicate with the processor in the form of M1/M0 File Transfers and Discrete I/O (DIO). M1/M0 file transfer is a method for moving large amounts of data between SLC 500 processors and this module. The Allen-Bradley 1747-SCNR also follow some Electromagnetic Compatibility (EMC) standards. This cable has passed the EN 50082-2 EMC /- Generic Immunity Standard, Part 2 - Industrial Environment. If you are connecting or disconnecting the ControlNet cable with the power applied, an electric arc can occur. This may cause an explosion in the installation of hazardous locations. Make sure the power is disconnected and that the area is not dangerous before continuing. The Allen-Bradley 1747-SCNR has a maximum backplane current of 900 mA at 5V DC.

>

Phone Number：+8618030175807>>

Technical Specifications



Communication：ControlNet
Operating Temperature：0-60 Celsius
Weight：1 pound (0.45 kilograms)
Backplane Current (24 Volts)：90 milliamps
Backplane Current (5 Volts)：800 milliamps
Compatible Processors：SLC 5/02, 5/03, 5/04, 5/05
Scan I/O：Yes
Module Type：ControlNet Scanner Module
Series：SLC 500
Part Number/Catalog No.：1747-SCNR
Brand：Allen-Bradley
No. of ControlNet ports：Two (2)
ControlNet topology：Non-redundant and redundant media
Chassis Location：Any slot expect left most slot
ControlNet Taps：1786-TPR 1786-TPS 1786-TPYR 1786-TPYS
ControlNet media：1786-RG6

>

E-mail：sales7@apterpower.com >>

1. High-performance remote I/O scanning
Dual-channel backplane communication: supports 57.6Kbps high-speed data transmission
Maximum expansion capability: can manage up to 30 remote I/O racks (1746 series)
Automatic baud rate detection: simplifies the network configuration process
Typical application: distributed production line control system
2. Intelligent diagnosis and maintenance
Real-time network status monitoring: LED indicator shows communication quality
Online module detection: automatically identifies the location of faulty nodes
Support hot-swap replacement: no need to shut down for maintenance
Typical application: key process equipment monitoring
3. Industrial-grade reliable design
-20℃~60℃ working range: adapt to harsh environments
Dual isolation protection: independent isolation of power/signal channels (1500Vrms)
Anti-electromagnetic interference: meets EN 61000-6-2 standards
Typical application: metallurgical/mining equipment control
4. Flexible topology support
Linear/star hybrid networking: maximum distance 1000 meters (fiber extension)
Terminal automatic matching: no need to manually configure terminal resistance
Support DH+ protocol conversion (requires 1747-KE module)
Typical application: upgrade and transformation of old systems
