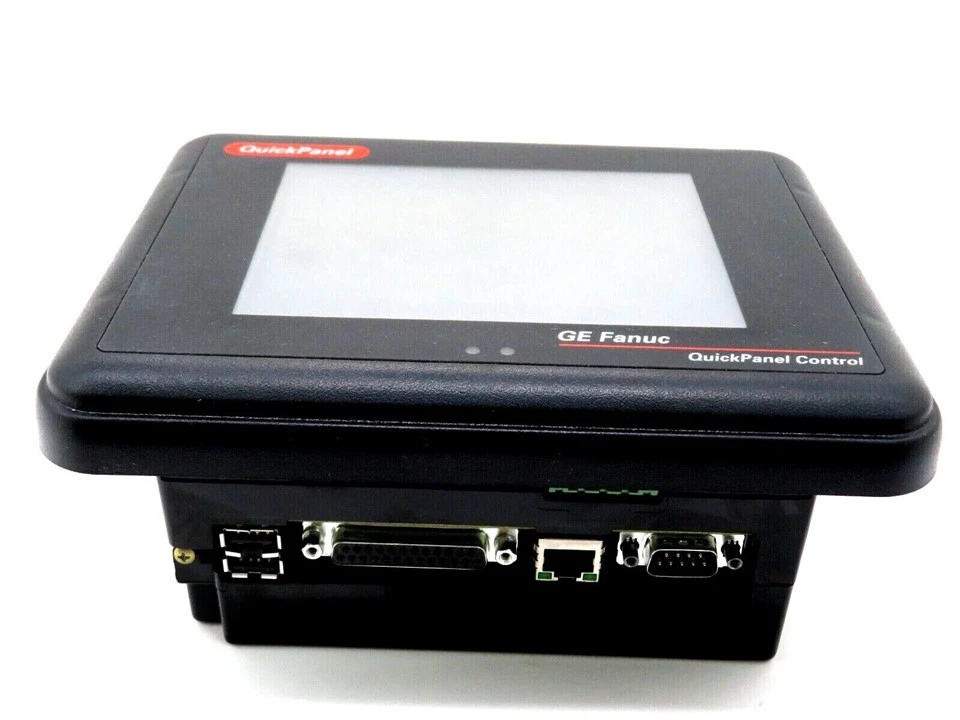

IC754CSL06CTD 6-inch Color TFT HMI
The GE Fanuc IC754CSL06CTD is a legacy QuickPanel Control operator interface that combines visualization and embedded control functions in one panel-mounted industrial unit. It is used for machine operation, process monitoring, alarm display and communication with PLC-based control systems.
Product Identification
| Manufacturer | GE Fanuc Automation (legacy GE Intelligent Platforms product family) |
|---|---|
| Catalog number | IC754CSL06CTD |
| Product family | QuickPanel Control |
| Product type | 6-inch color TFT operator interface / HMI controller |
| Power | 10.8 to 30 VDC input range; 24 W real power |
| Manufacturer reference | 6-inch QuickPanel View/Control Hardware User's Guide, GFK-2305 |
Technical Data
| Display | 5.75-inch active display area, color TFT, 65,536 colors |
|---|---|
| Resolution | 320 × 240 pixels |
| Touch interface | 12-bit resistive touchscreen |
| Processor | Intel XScale PXA250, 300 MHz |
| Memory | 32 MB DRAM; 32 MB or 64 MB Flash depending on hardware configuration; 512 KB battery-backed SRAM |
| Ethernet | 10/100Base-T, IEEE 802.3, RJ45 |
| Serial ports | COM1: RS-232/RS-485; COM2: RS-232 |
| Additional interfaces | Two USB 1.1 host ports, one CompactFlash Type II slot and an expansion bus |
| Operating system | Microsoft Windows CE.NET |
| Panel protection | NEMA 4, 4X and 12 / IP65 equivalent when correctly panel-mounted |
| Operating temperature | 0 to 60 °C |
| Unit weight | Approximately 1.16 kg (2.5 lb) |
Specifications above are taken from GE Fanuc family documentation for the 6-inch QuickPanel View/Control platform. Confirm the complete nameplate and hardware suffix before ordering because installed memory, firmware and approvals can vary by revision.
Typical Applications
Operator commands, status visualization, recipe entry and alarm acknowledgement.
Serial or Ethernet communication with supported industrial controllers and networks.
Maintenance replacement for installed QuickPanel Control applications where the original project and wiring must be retained.
Lifecycle and Replacement Guidance
There is no confirmed drop-in replacement. Later QuickPanel+ units such as the 6-inch IC755CSS06CDA or IC755CSS06RDA may be migration candidates, but they must not be treated as automatic one-for-one substitutes. A successful modernization requires an engineering review.
Check these items before selecting a replacement
- Original Proficy Machine Edition project backup, target type, runtime version and firmware.
- Panel cutout, bezel dimensions, mounting depth and enclosure rating.
- 24 VDC supply capacity, grounding and power connector arrangement.
- PLC model, communication protocol, serial pinout, Ethernet settings and cable type.
- Use of scripts, alarms, recipes, data logging, CompactFlash files or expansion hardware.
- Required hazardous-location or regulatory approvals.
Migration requirement: Keep a verified backup of the running application before removing the installed panel. Project conversion, driver changes, screen resizing, cable changes and full machine validation may be required.
Common Model Entries and Suffix Checks
Buyers may search for IC754CSL06CTD, IC754CSL06CTD-ML, IC754 CSL06CTD or IC754CSL06CTD ML. Do not remove or assume a suffix: compare the full nameplate, revision label and installed project before purchase. Similar-looking IC754CBL06CTD, IC754VSL06CTD and monochrome IC754CSL06MTD units are different catalog configurations and are not automatically interchangeable.
What to Send for a Faster RFQ
- Complete catalog number and every suffix on the nameplate.
- Clear front and rear nameplate photographs.
- Quantity, destination country and required delivery date.
- Required condition and whether the original application must be retained.
- PLC model, communication cable/port and available project backup.
Request a Quote for IC754CSL06CTD
Frequently Asked Questions
1. Is GE Fanuc IC754CSL06CTD discontinued?
It is a legacy QuickPanel Control product and is absent from the current Emerson HMI portfolio. The precise manufacturer discontinuation date could not be confirmed from accessible official records. Availability is therefore handled as legacy stock.
2. Is a QuickPanel+ a direct plug-in replacement?
No. A QuickPanel+ can be a migration platform, but panel dimensions, power, communications, driver support, project conversion and machine validation must be checked.
3. Can the existing HMI project be transferred?
Transfer depends on having the original Proficy Machine Edition project and a compatible development/runtime version. A runtime-only panel may not provide an editable source project.
4. What communication interfaces are available?
The documented 6-inch platform includes 10/100Base-T Ethernet, one RS-232/RS-485 serial port, one RS-232 serial port and two USB 1.1 host ports. Confirm the exact hardware revision and fieldbus options on the nameplate.
5. What information is required to confirm compatibility?
Send the complete part number, suffix, firmware/runtime details, PLC and protocol, panel cutout, wiring photos and the original project backup status.
