Honeywell SC-TEPR01 ControlEdge RTU Expansion End Plate

Honeywell SC-TEPR01 ControlEdge RTU Expansion End Plate

The Honeywell ControlEdge 2020 process controller is a modular,powerful, and scalable system capable of all remote automation andcontrol applications. When combined with Experion® PKS and itssimplified SCADA configuration, it solves the remote automationrequirements.ControlEdge RTU supports controller redundancy, Honeywell wiredand wireless I/O and enhanced Experion SCADA integration.

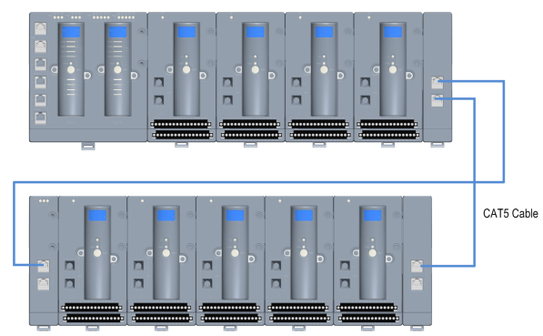

ControlEdge RTU system consists of a controller, expansion I/Omodules, right end plate, and left end plate. These components arecombined with field devices to make a complete system.

high

quality

Massive inventory

Professional Team

One-Stop Solution

Specifications:
Operating Temperature: -40°C to 70°C (-40°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Humidity: 5% to 95% non-condensing
Environmental Protection: Suitable for harsh environments
Compliance: Meets international standards for industrial control systems

Applications:
ControlEdge RTU modular systems for industrial automation
Used in process control, remote monitoring, and data acquisition
Ideal for oil & gas, water treatment, and power generation sectors

The Honeywell SC-TEPR01 is an expansion end plate designed for the ControlEdge RTU (Remote Terminal Unit) system. This component provides a secure and protective closure for the RTU's modular design, ensuring the safe termination of expansion modules. The SC-TEPR01 helps maintain the integrity and durability of the RTU system in industrial control environments.
The SC-TEPR01 expansion end plate is a vital accessory for extending and securing the Honeywell ControlEdge RTU system. It provides the necessary protection to the modules by ensuring that the expansion slots are securely closed. Its durable construction and industrial-grade design make it a reliable choice for a wide range of automation and control applications, offering flexibility and protection in critical environments.

To install the controller with expansion I/O modules
1. Remove the connector cover on the right side of controller IOTA.
2. Mount the controller IOTA onto the DIN rail.
3. Mount the expansion I/O IOTAs onto the DIN rail and insert theIOTA into the controller IOTA.
4. Set the rotary switch to the address of the IOM, ranging from 1 to99.
5. Insert the CPM onto the IOTA and secure it.6. Insert IOM onto the expansion I/O IOTA and sure it.
Wiring and cabling
All I/O channels share the power source with the system componentswhile the two analog output devices are powered internally. In mostcases, the other 26 channels require external cabling to introduce thevoltage to field loops from the system power source.

Contact Vicky for datasheet and manual related to sc-tepr01(sc tepr01)
