I. Introduction
In modern automated production systems, the Human-Machine Interface (HMI), as the core interface for interaction between operators and control systems, directly determines the efficiency and stability of production operations. From single machines to entire production lines, high-performance, highly compatible, and highly durable operating terminals are always essential products for equipment upgrades and spare parts replacements in industrial manufacturing, metallurgy, and light industry sectors. Allen-Bradley, a global benchmark brand in industrial automation, has long been active in various scenarios for upgrading existing equipment and building new projects with its PanelView Standard series of HMIs, thanks to their solid product performance, rich communication capabilities, and compact structural design. The 2711-B5A16 model, built on the PanelView 550 platform, is a monochrome LCD operating terminal that integrates button operation, multi-protocol communication, alarm management, screen security, and other practical functions, making it compatible with most small and medium-sized PLC control systems. This article provides a comprehensive overview of the 2711-B5A16 HMI, covering its product advantages, communication capabilities, core functions, structural design, and applicable scenarios. It also includes detailed technical parameters, application value analysis, and answers to frequently asked questions, offering a complete product reference for professionals in the automation industry.
II. Overall Product Advantages: Compact Design and Powerful Performance
The 2711-B5A16 belongs to the Allen-Bradley PanelView Standard 550 series of electronic operator terminals. This series emphasizes three core features: space-saving installation, integrated design, and stable all-weather operation. It abandons the bulky structure of traditional CRT monitors, adopting a flat panel design while retaining essential industrial equipment protection characteristics such as anti-interference, high and low temperature resistance, and dust and water resistance.
This model features a 5.5-inch monochrome LCD screen with pixel-level graphics display technology. It offers a wide viewing angle and clear image display, allowing operators to easily read equipment data, operating status, and fault information even in complex lighting environments such as strong and weak light in workshops. In terms of hardware configuration, the device is equipped with high-capacity flash memory, capable of stably storing multiple application screens to meet the screen editing and data display needs of conventional production lines. Unlike ordinary civilian displays, this industrial terminal features a specially optimized backlight module, with backlight components that can be replaced on-site, significantly extending the overall lifespan of the equipment and reducing subsequent maintenance costs.
Meanwhile, the entire machine is positioned as an industrial-grade durable device with a robust structure, suitable for workshop environments with high vibration and dust levels. Whether for new equipment installation or replacement of HMI spare parts for older production lines, the 2711-B5A16 can be quickly deployed, balancing performance and practicality, making it the preferred operating terminal for small to medium-sized automated equipment.
III. Rich Operating Methods and User-Friendly Function Configuration
To adapt to the usage habits and on-site operational needs of different operators, the 2711-B5A16 adopts a button-based operation scheme, combined with dedicated function buttons and numeric keys. The operating logic is simple and intuitive, with a low learning curve. The equipment is equipped with 10 independent function keys, a complete numeric keypad, and cursor control keys, supporting quick screen switching, parameter input, and command issuance. It eliminates the need for complex touch controls, offering significant advantages in industrial environments involving oil stains and gloves.
On the software side, this model integrates a full suite of practical industrial human-machine interface functions. Firstly, it features a comprehensive alarm management system that records and displays various alarm information triggered by the equipment in real time, marking alarm operating status and supporting alarm list viewing, clearing, and printing, facilitating maintenance personnel to trace the source of faults. Secondly, it incorporates a screen security hierarchy function, allowing administrators to set permission levels for different operating screens, dividing access permissions for operators, inspectors, and managers, effectively mitigating production risks caused by misoperation.
The equipment comes standard with an independent RS-232 printing interface, allowing external printers to output alarm records, status information, and multi-segment indicator trigger status data, meeting the factory's data archiving and ledger management requirements. Furthermore, the equipment has a built-in battery-powered real-time clock that accurately timestamps critical operating data and alarm information, ensuring the integrity of production data. The product supports over 46 languages globally, making it suitable for multilingual production plants both domestically and internationally, demonstrating exceptional versatility.
IV. Multi-Protocol Communication: Compatible with Mainstream Control Systems, Flexible Networking
Communication capability is a core competitive advantage of industrial HMIs and one of the key highlights of the 2711-B5A16. This model integrates a full range of mainstream industrial communication protocols, perfectly adapting to the entire Allen-Bradley controller series, while also being compatible with mainstream third-party PLC brands on the market. Flexible and diverse networking methods are available to meet various field requirements, including point-to-point communication, bus networking, and remote I/O connections.

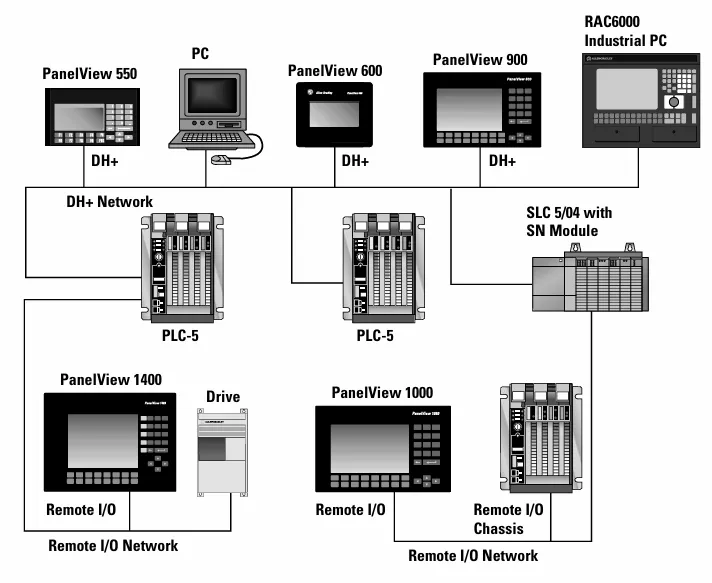

The device natively supports nine communication protocols: DeviceNet, ControlNet, Data Highway Plus, Remote I/O, DH-485, DF1, RS-232, Profibus, and Modbus. For Rockwell's proprietary control systems, it can seamlessly interface with mainstream controllers such as MicroLogix, SLC 500, PLC-5, and ControlLogix, directly reading controller data files and simplifying ladder diagram programming. When dealing with third-party devices, the PROFIBUS protocol enables communication with Siemens controllers, while the Modbus protocol allows integration with control systems from brands like Modicon and GE, breaking down communication barriers between different brands.
Different communication protocols cater to different application scenarios: DeviceNet supports device-level communication and a "listen-only" mode, reducing network load; ControlNet supports redundant cabling, ensuring communication stability on critical production lines; Remote I/O enables bidirectional transmission of discrete and block data; DF1 and RS-232 are suitable for short-distance point-to-point high-speed communication. This diverse range of communication options allows the 2711-B5A16 to integrate into various automation control systems, both new and old, from different brands, greatly enhancing its reusability.
V. Operating Condition Adaptability and Protection Level: Adaptable to Complex Industrial Sites
The environmental adaptability of industrial equipment directly determines its service life. The 2711-B5A16 is designed according to stringent industrial standards, with temperature, humidity, protection level, and electrical specifications all meeting the requirements for indoor industrial use. The equipment operates within a temperature range of 0℃ to 55℃, with a storage temperature range of -20℃ to 70℃, making it suitable for environments with significant temperature differences, such as low-temperature workshops in northern regions and high-temperature factories in summer. The required humidity is 5%~95% (non-condensing), allowing for stable operation even in humid workshops, textile mills, and food processing plants where humidity is high.
Regarding protection, the unit meets NEMA 12, 13, and 4X (indoor use) standards and also boasts IP54 and IP65 dust and water resistance ratings, effectively preventing dust and splashed liquids from entering the machine. It is suitable for machining, metallurgy, and building materials industries with high dust and moisture content. Electrically, it supports dual power supply from AC 85-264Vac and DC 18-32Vdc, compatible with standard factory power lines. The maximum AC power consumption is 45VA, and the maximum DC power consumption is 18W, demonstrating low energy consumption and strong power supply stability.
The product has passed UL and CSA safety certifications, and also possesses Class 1, Div 2 explosion-proof certifications and CE certifications, meeting the industrial equipment access standards of most regions worldwide. It can be used in conventional industrial settings in China as well as in conjunction with export equipment. The entire unit weighs only 1.2kg, has a compact size, and an installation depth of only 86mm. Its ultra-thin structure significantly saves control cabinet panel space, allowing for more flexible installation layouts.
VI. Technical Specifications
Display Type: Monochrome LCD
Display Size: 120mm × 60mm, 5.5 inches diagonally, 256 × 128 pixels resolution
Operation Method: Button operation, equipped with 10 function keys, numeric keys, and cursor control keys
Touch Unit: None
Real-time Clock: Battery-backed clock, supports data timestamp recording
Application Memory: 240K flash memory (for storing application screens)
Communication Interfaces: DeviceNet, ControlNet, DH+, Remote I/O, DH-485, RS-232, DF1, Profibus, Modbus
Print Interface: RS-232, baud rate supports 1200/2400/9600/19200bps
Power Supply: AC 85-264Vac; DC 18-32Vdc
Power Consumption: AC maximum 45VA, DC maximum 18W (under 24Vdc conditions) 0.75A)
Programming Software: PanelBuilder32 (Windows platform)
Operating Temperature: 0~55℃;
Storage Temperature: -20~70℃
Ambient Humidity: 5%~95%, non-condensing (0~30℃)
Protection Rating: NEMA 12, 13, 4X (indoor), IP54, IP65
Product Certifications: UL, CSA, Class 1, Div 2 (Groups A/B/C/D), CE
Weight: 1.2kg
Dimensions: 167.6mm (H) × 266.7mm (W) × 106.7mm (D)
Installation Depth: 86mm
Conclusion
Overall, the Allen-Bradley 2711-B5A16, as a classic HMI in the PanelView Standard 550 series, is a comprehensive, powerful, robust, and widely compatible industrial operation terminal. The compact, ultra-thin design solves the problem of limited control cabinet space. Its rich button operation adapts to harsh industrial environments. Multi-protocol communication capabilities enable interoperability between controllers from multiple brands. High-level protection and wide-temperature operation ensure long-term stable service.
This product serves not only as a standard HMI for new automated production lines but also as a core replacement spare part for damaged HMIs in older Allen-Bradley control systems and imported equipment. It is widely used in machinery manufacturing, light industry, metallurgy, water treatment, warehousing and logistics, and other industries. In the fields of industrial automation retrofitting, equipment maintenance, and spare parts procurement, the 2711-B5A16 continues to play a vital role with its mature technology and stable performance, providing strong support for enterprises to reduce equipment retrofitting costs, simplify maintenance processes, and improve production management efficiency.
For procurement, technical consultation, and selection services, please contact our sales manager at any time.
Manager: Vicky
Email: sales7@apterpower.com
Call or Whatsapp: +8618030175807
FAQ
Q: How to install the 2711-B5A16? What are the precautions during installation?
A: This model is a panel-embedded installation, compatible with standard opening sizes. During installation, ensure the cabinet panel is flat, the sealing ring is intact, and IP65 protection is guaranteed. The equipment must be kept away from strong electromagnetic interference sources and high-temperature heat sources. Separate AC and DC power supply lines should be used for wiring, and communication cables should be run separately to avoid signal interference.
Q: What software is used for programming and uploading/downloading screens?
A: PanelBuilder32 software under Windows is used. Application screens can be uploaded, downloaded, and edited via the unit's RS-232 interface, communication bus, or external memory card.
Q: How to handle screen backlight malfunctions? Is complete unit replacement necessary?
A: The backlight component of this model can be replaced individually on-site, eliminating the need to replace the entire HMI, thus reducing maintenance costs. Before replacement, be sure to disconnect the power supply to the equipment to ensure operational safety.
Q: How to troubleshoot communication failures or inability to connect to the PLC?
A: First, verify that the communication protocol, baud rate, and station address parameters are consistent with the controller; check the communication line wiring and bus termination resistors for proper function; confirm that the corresponding communication module is working properly, and troubleshoot issues related to lines, parameters, and hardware one by one.
Q: Does the equipment support an external printer? What content can be printed?
A: It comes standard with an RS-232 printer interface, supporting the printing of alarm lists, triggered alarm information, and multi-status indicator light operation status data.
Q: What is the product warranty period? Is the spare parts supply stable?
A: The original manufacturer's standard warranty is executed according to brand specifications. We maintain a long-term stock of this model and related spare parts, enabling rapid response to equipment maintenance and replacement needs, ensuring continuous operation of customer production lines.
Q: Can this terminal communicate with third-party PLCs such as Siemens and Modicon?
A: Yes, you can enable the Profibus protocol to connect to Siemens controllers and the Modbus protocol to connect to Modicon, GE, and other brand devices. Once the protocol parameters are configured, normal network communication can be established.
