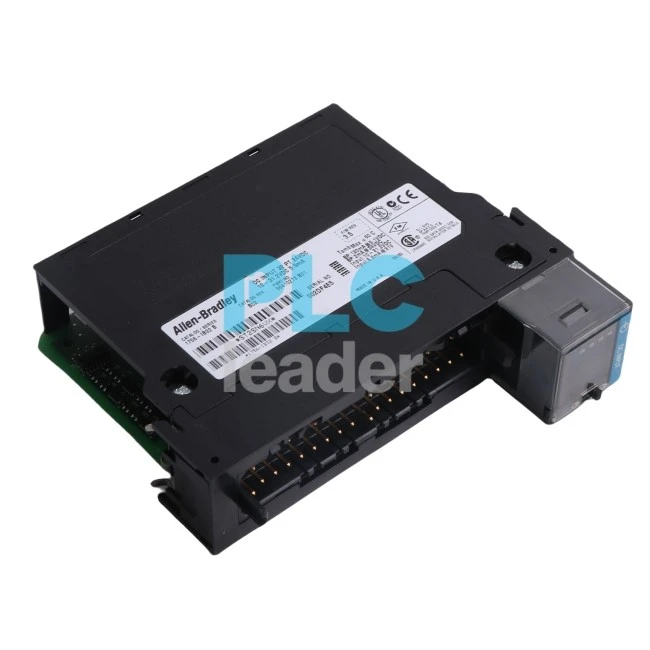

Allen Bradley/Rockwell 1756-IB32 Digital DC Input Module

Product Description

The Allen-Bradley 1756-IB32 module is a ControlLogix series digital input module with 32 input channels. The 1756-IB32 digital input module uses DC voltage to operate, and its operating voltage range is from 10 to 31.2 Volts DC. It also supports 12 to 24 Volts DC sink voltage. The current ratings for the 1756-IB32 digital input module include 5.5 milliamps of maximum operating current, 1.5 milliamps of maximum off-state input current, 120 milliamps of maximum backplane current at a voltage of 5 Volts DC, 100 milliamps of maximum backplane current at a voltage 5.1 Volts DC, and 2 milliamps of maximum backplane current at a voltage of 24 Volts DC.

The Allen-Bradley 1756-IB32 is a High-Density Discrete input module that belongs to the ControlLogix product family of Programmable Automation Controllers (PAC). This module features Thirty-Two (32) input channels, grouped in Two (2) with Sixteen (16) channels each group.

It may be installed to a local I/O rack or distributed I/O chassis or in a stand-alone or Distributed Control Systems (DCS) such as Allen-Bradley's Plant PAx. One this module is entered through the Hardware configuration, the module's parameters are accessible such as the module's general properties with important parameters of compatible keying and slot assignment. This module also has a configurable Request Packet Interval (RPI), Module Inhibition, Reaction to communication failure and Scheduled connection over ControlNet. Each channel of this module has configurable filter settings to allow fine tuning of the module's reaction time to signals. This adjustment is useful in applications where discrete signals are erratic and exposed to noise. This feature helps prevent false positive negative readings.

This module is also provided with the capability of self-diagnosis through the module info where the module's diagnostic status can be monitored such as minor and major fault. It can also detect the status of the ControlLogix backplane where the module is connected.

This module is shipped with a Removable Terminal Block (RTB). This RTB enables modular replacement of a defective module an provides ease of wiring the signals. Compatible RTB for this module are 1756-TBCH 1756-TBS6H or a 36-terminal RTB.

1. Is the 1756-IB32 compatible with all ControlLogix controllers?

Yes, it works with any ControlLogix controller that supports the 1756 chassis.

2. Can the module handle both sinking and sourcing inputs?

No, it supports sinking inputs only.

3. Does the module require additional power supplies?

The module draws power from the ControlLogix backplane and does not need separate power supplies.

4. What troubleshooting features does the module offer?

It includes LED indicators for real-time input status and fault detection diagnostics.
