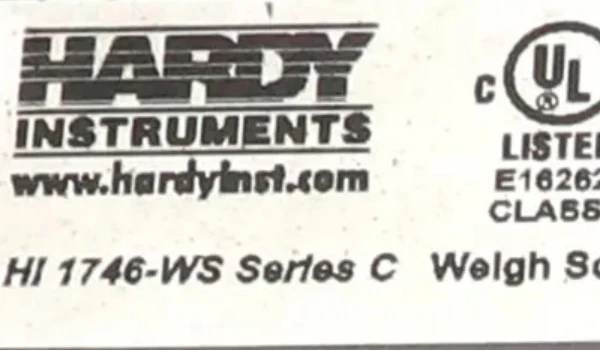

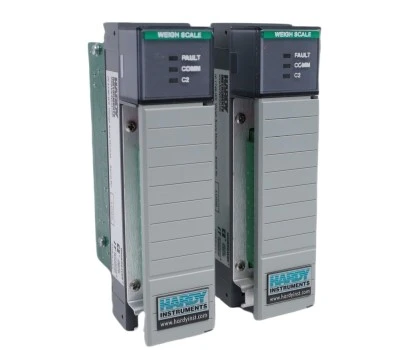

1746-WS Weigh Scale Module
The Allen-Bradley 1746-WS is a high-performance weigh scale module from the SLC 500 series, designed for precise weight measurement and control in industrial automation systems. Developed by Hardy Process Solutions, this module integrates seamlessly into SLC 500 racks, providing accurate and reliable weight data for applications such as batching, blending, filling, and level monitoring.
Technical specifications
Manufacturer: Allen Bradley
Model: 1746-WS
Series: SLC 500
Module Type: Weigh Scale Module
Number of Channels: 1
Supported Load Cells: Up to 8 (350-ohm) strain gauge load cells
Excitation Voltage: 5 VDC ±5%
Resolution: 20-bit A/D conversion (985,000 counts)
Conversion Rate: 20 updates per second
Backplane Current: 250 mA @ 5 VDC
Certifications: UL, cUL, CE
Related words：1746 ws;Allen Bradley 1746-WS;1746-WS pdf; 1746-WS datasheet; 1746-WS manual; 1746-WS sell; 1746-WS new; 1746-WS Allen Bradley
Key Features
- Integrates directly into SLC 500 racks for seamless operation
- Supports Hardy's C2® electronic calibration for quick setup
- WAVERSAVER® technology filters out plant vibration for accurate readings
- INTEGRATED TECHNICIAN® diagnostics for real-time system monitoring
- Two TTL-level outputs for control of external devices
- LED indicators for Run/Fault, Communication, and C2 status
