Products Description
Allen-Bradley's 2098-DSD-020-SE Digital Servo Drive belongs to the Ultra3000 series of servo drives. It is used for high-performance motion control applications. Used in different architectures, it is one of the most widely-used third-party control systems. It uses the SERCOS interface which is a part of the Kinetix integrated motion solution. Using a fiber-optic ring, the 2098-DSD-020-SE interfaces command from the memory to the connected peripherals. The ambient temperature rating is between 0-55 oC, and the small size of the whole module makes transportation easy.
This Ultra3000 servo drive houses a servo motor, a feedback cable, and a crake module/shunt module as an optional component that can be used as required. Working on 230V AC as input, it generates an output with a range of 115-230V AC (1-phase), at 47-63 Hz. The 2098-DSD-020-SE Ultra 3000 also has 10 Amperes (0-peak) Continuous Output Current and 30 Amperes (0-peak) Intermittent Output Current.Supporting speeds of up to 8MBps, it uses DeviceNet as its communication medium using the dedicated slots such as the RS-232 and the RS-485. The 3 ports (CN1, CN2, and CN3) are used as connecting terminals for different uses. The 2098-DSD-020-SE acts as an aid to the Ultra3000 series to simplify the drive indexing and SERCOS interfacing between 1 or more devices.
Technical Specifications
| Brand | Allen-Bradley |
| Nominal Input Current (AC) | 18 Amps Root Means Square |
| Series | Ultra 3000 Drives |
| Module Type | Digital Servo Drive |
| Internal Shunt Resistance | N/A |
| Bus Capacitance | 1880 ?F |
| Output Current (Intermittent) | 30 Amps (0-peak) |
| Output Current (Continuous) | 10 Amps (0-peak) |
| Auxiliary Power Supply | No |
| Product Line | Ultra3000 |
| Input Frequency (AC) | 47-63 Hz |
| Input Voltage (AC) | 100-240 Voltage (Single Phase) |
| Bus Overvoltage | 400 Volts dc |

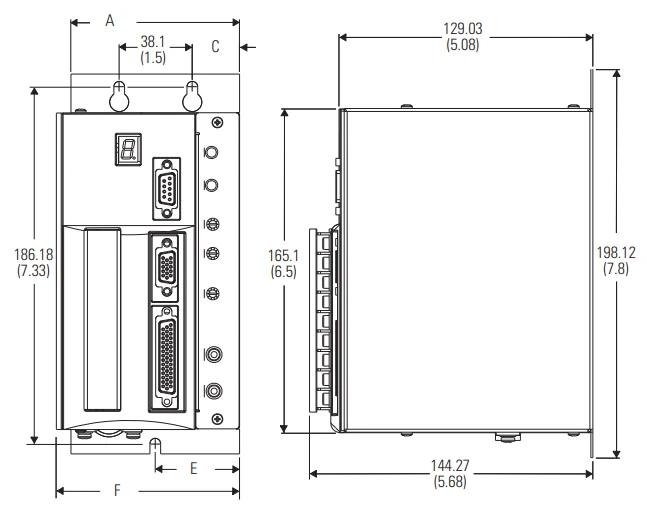

| Dimensions | 7.8 x 5.68 3.89 x in (198.12 x 144.27 x 98.1 mm) |
| Features | Sercos |
| Part Number/Catalog No. | 2098-DSD-020-SE |
Key Features
· Continuous output power: 110V…460V (0.25…22kW)
· 100…480V AC selectable, single-phase and three-phase input
· SERCOS interface or DeviceNet connectivity selectable
· 7.5…150A peak current capability
· Uses standard high-density D-Shell connector
· Field-programmable flash firmware storage
· Eight selectable general-purpose inputs
· Four selectable general-purpose outputs and relay outputs
· One serial port for RS-232 or RS-485 communications
· Built-in multi-turn absolute encoder support or optional external logic power supply for position retention during power outages
