330901-10-60-70-02-05

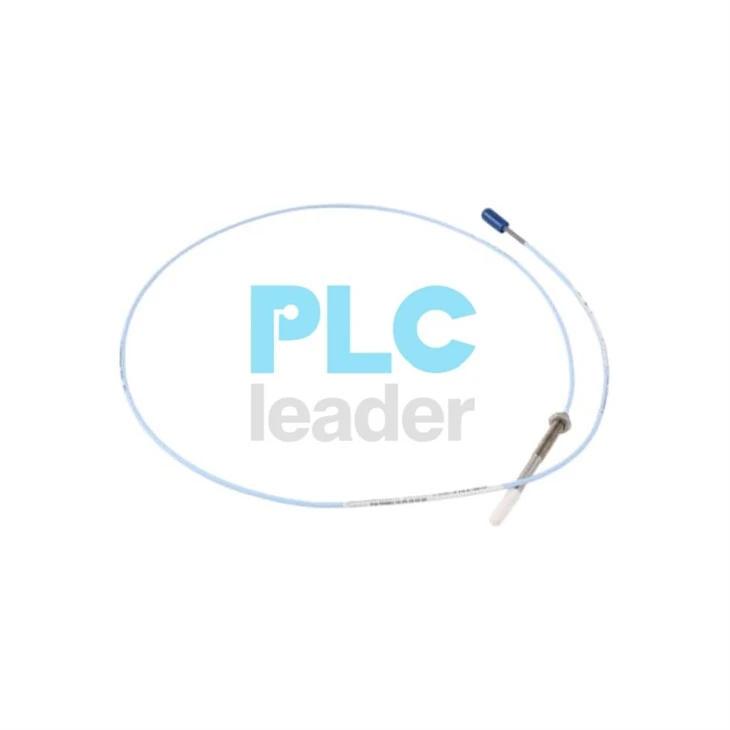

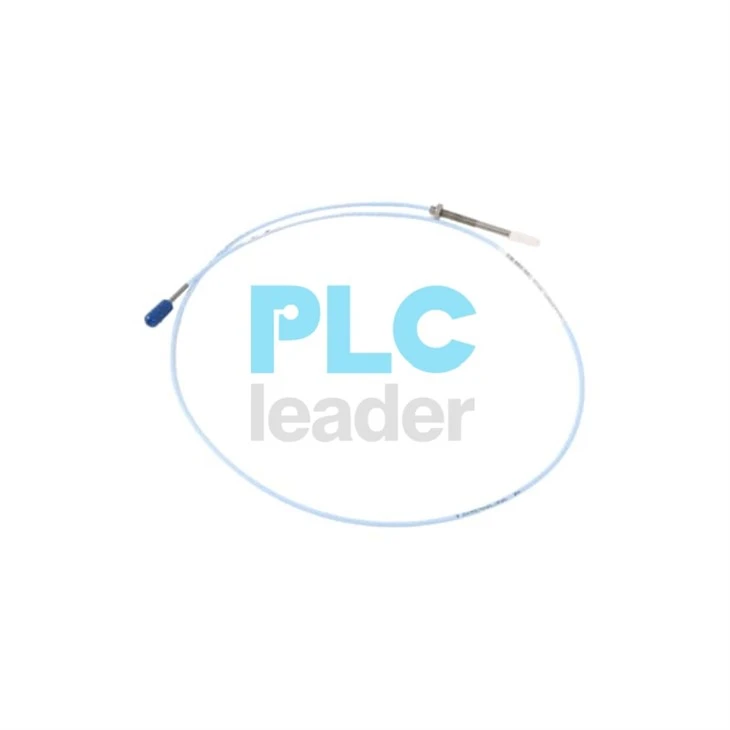

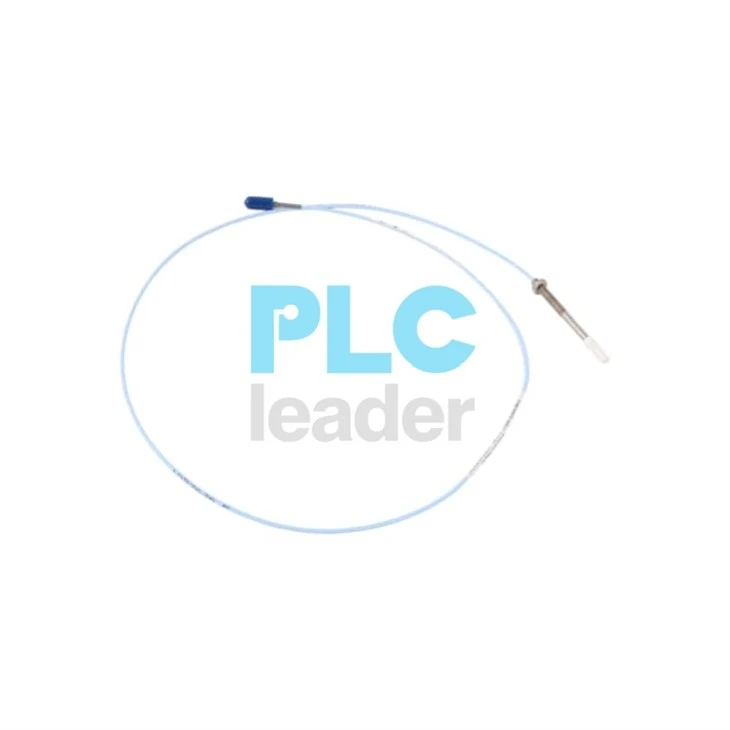

Bently Nevada 330901-10-60-70-02-05 3300 XL NSv Proximity Probe
330901-10-60-70-02-05 is a 1/4-28 UNF unarmored NSv probe with a 1.0 in unthreaded length, 6.0 in case, 7.0 m cable and multiple approvals. The decoded values below are kept separate from similar part numbers and are limited to manufacturer documentation.
Confirmed Product Information
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Product family | 3300 XL NSv Proximity Transducer System |
| Probe base number 330901 | 1/4-28 UNF thread, without armor |
| Unthreaded length option 10 | 1.0 inch |
| Overall case length option 60 | 6.0 inches |
| Total length option 70 | 7.0 metres (23.0 feet) |
| Connector and cable option 02 | Miniature coaxial ClickLoc connector, standard cable |
| Agency approval option 05 | Multiple Approvals |
| System linear range | 1.5 mm (60 mils), when used in the specified NSv system |
| Recommended gap setting | 1.0 mm (40 mils) |
Applications And Installation Checks
Confirmed Compatibility Conditions
Match the complete NSv signal chain: NSv probe, NSv extension cable and 3300 XL NSv Proximitor sensor. A 7.0 m integral probe requires the corresponding total system-length configuration. Do not mix the NSv probe with an ordinary 3300 XL 8 mm extension cable or Proximitor sensor.
Approval And Documentation Check
Option 05 is identified by the manufacturer as Multiple Approvals. Confirm the country-specific certificate and installation drawing for the destination and hazardous-area method.
Lifecycle And Replacement Guidance
The reviewed manufacturer material does not provide an exact discontinuation date or confirm a universal drop-in replacement for 330901-10-60-70-02-05. Keep the complete ordering code and verify all mechanical, electrical, system-length, approval and installation conditions before substitution.
Frequently Asked Questions
Why is 330901-10-60-70-02-05 an NSv probe rather than a standard 8 mm probe?
The NSv system is designed for restricted counterbore, side-view or rear-view clearance and small-target applications. It has its own probe, extension cable and Proximitor sensor family.
Which dimensions must be checked before installing 330901-10-60-70-02-05?
Confirm the 1/4-28 UNF thread, 1.0 in unthreaded length, 6.0 in case length, cable routing and available side and rear clearance.
Can 330901-10-60-70-02-05 connect to a standard 3300 XL 8 mm Proximitor sensor?
Do not assume compatibility. The manufacturer defines this probe for the matched 3300 XL NSv signal chain.
What does approval option 05 mean for 330901-10-60-70-02-05?
The official ordering table identifies 05 as Multiple Approvals. The exact certificate and installation method still must be checked for the destination country and area classification.
Can 330901-10-60-70-02-05 replace a 3000-series or 7000-series 190 system by itself?
No. The manufacturer states that upgrades from those systems must replace the probe, extension cable and Proximitor sensor with NSv components.
Model Identification
Use the complete number 330901-10-60-70-02-05. Hyphen placement and zero padding are significant in Bently Nevada ordering codes. Similar-looking suffixes identify different dimensions, cable constructions, approvals or fittings, so quotations and replacements must be checked against the full label.
Manufacturer References
Bently Nevada datasheet 147385 Rev. R, 3300 XL NSv Proximity Transducer System.
