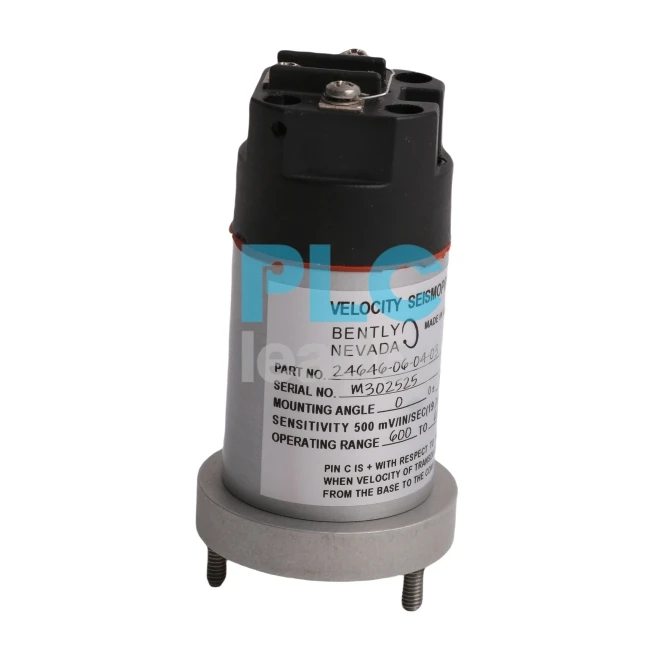

Bently Nevada 24646-06-04-03 Velocity Seismoprobe

Products Description

Bently Nevada Seismoprobe Velocity Transducer Systems aredesigned to measure absolute (relative to free space)bearing housing, casing, or structural vibration. The two-wiresystems consist of a transducer and appropriate cable.The Seismoprobe family of velocity transducers is a two-wiredesign that uses moving-coil technology. It provides avoltage output directly proportional to the transducer'svibration velocity.Moving-coil transducers are less sensitive to impact orimpulsive excitation than solid-state velocity transducers,which are inherently accelerometers with embeddedintegration electronics.

Part Number: 24646-06-04-03

Measurement Range:

Velocity measurements in the range of 0–100 mm/s or equivalent, depending on specific configurations.

Frequency Response:

Designed for a wide frequency range, typically 4.5 Hz to 1 kHz, ensuring accurate measurements across various machinery types.

Sensitivity:

Nominal sensitivity of 3.94 mV/mm/s (or equivalent), delivering high-resolution vibration data.

Environmental Tolerance:

Temperature Range: Operates between -40°C to +85°C, ensuring reliable performance in extreme environments.

Humidity: Resistant to high-humidity conditions, with a sealed design to protect internal components.

Vibration and Shock: Withstands mechanical shocks up to 50 g and vibration levels beyond 10 g without performance degradation.

Two types of Seismoprobe Velocity Transducerare available:

• 9200: The 9200 is a two-wire transducersuitable for continuous monitoring or forperiodic measurements in conjunctionwith test or diagnostic instruments. Whenordered with the integral cable option,the 9200 has excellent resistance tocorrosive environments without need ofadditional protection.
• 74712: The 74712 is a high temperatureversion of the 9200

Interconnect cables are available forconnecting the 9200 and 74712 transducers toother instruments. These cables are available invarious lengths with or without stainless steelarmor.

Q1: What types of machinery can the Velocity Seismoprobe monitor?

A: The 24646-06-04-03 is ideal for rotating equipment like turbines, compressors, pumps, and motors, as well as reciprocating machinery.

Q2: Is the sensor resistant to harsh environmental conditions?

A: Yes, the sensor is designed to operate in extreme temperatures, high humidity, and high-vibration environments.

Q3: Can it be used with existing Bently Nevada systems?

A: Absolutely, the Seismoprobe integrates seamlessly with Bently Nevada condition monitoring systems, ensuring compatibility and ease of deployment.

Q4: What is the typical lifespan of this sensor?

A: With proper installation and usage, the sensor provides long-term reliability, often exceeding industry standards for similar devices.
