24701-28-05-XX-025-04-XX MOD 323933-30-02

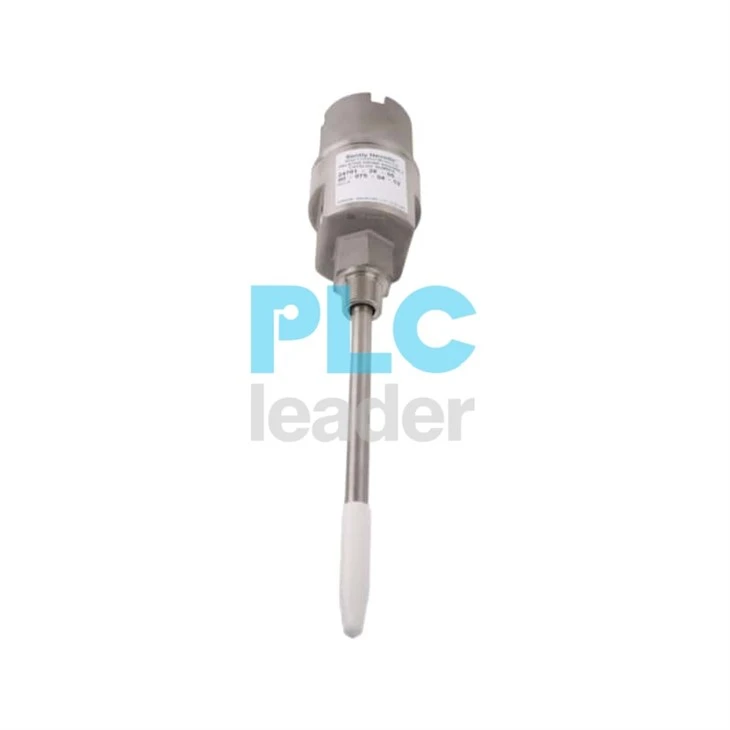

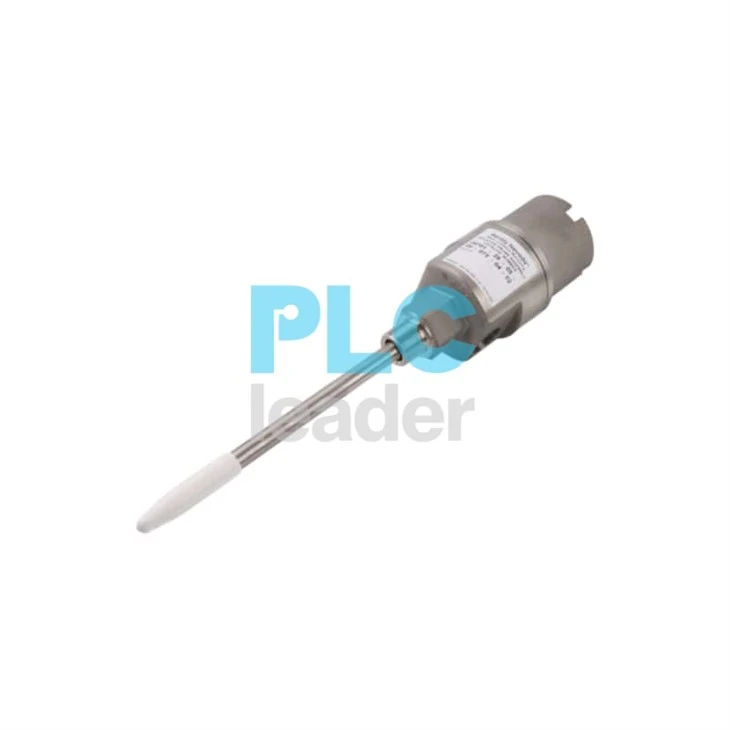

Bently Nevada 24701-28-05-XX-025-04-XX MOD 323933-30-02 24701 Stainless Steel Proximity Probe Housing
24701-28-05-XX-025-04-XX MOD 323933-30-02 is a modified 24701 stainless-steel housing identified by MOD 323933-30-02, using an approved 3300 XL 8 mm probe, 0.5 m cable and 2.5 in probe penetration. The confirmed fields below are kept separate from similar part numbers and are limited to reviewed manufacturer documentation.
Confirmed Product Information
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Housing family | 24701 stainless-steel proximity probe housing assembly |
| Housing and sleeve material | 303 stainless-steel body with 304 stainless-steel sleeve |
| Probe option 28 | 3300 XL 8 mm probe with approval option |
| Probe cable option 05 | 0.5 metre (20 inches) |
| Standoff adapter option XX | Not decoded in the public standard table; verify the controlled MOD drawing |
| Probe penetration option 025 | 2.5 inches (approximately 64 mm) |
| Fittings option 04 | One 3/4-14 NPT plug only |
| Mounting thread option XX | Not decoded in the public standard table; verify the controlled MOD drawing |
| MOD identifier | 323933-30-02 |
Applications And Installation Checks
Confirmed Compatibility Conditions
Frequently Asked Questions
Why must the MOD identifier remain with 24701-28-05-XX-025-04-XX MOD 323933-30-02?
MOD 323933-30-02 distinguishes a manufacturer-controlled configuration that the public standard ordering table does not fully decode.
Which fields are publicly confirmed for 24701-28-05-XX-025-04-XX MOD 323933-30-02?
The public datasheet confirms probe option 28, 0.5 m cable option 05, 2.5 in penetration option 025, and fittings option 04.
What do the XX positions in 24701-28-05-XX-025-04-XX MOD 323933-30-02 mean?
The public standard table does not define XX as a standard selectable value. Obtain the values from the OEM drawing, nameplate or original order record.
Can another 24701 housing directly replace 24701-28-05-XX-025-04-XX MOD 323933-30-02?
Do not assume a direct replacement. The unknown standoff and mounting thread, MOD identifier, penetration and fittings must all match.
What sleeve-support check applies to 24701-28-05-XX-025-04-XX MOD 323933-30-02?
The manufacturer requires sleeve support when standoff plus penetration exceeds 12 inches. Because the standoff is XX, calculate the final C+D dimension from the controlled drawing before installation.
Model Identification
Use the complete identifier 24701-28-05-XX-025-04-XX MOD 323933-30-02. Hyphen placement, zero padding, XX or XXX positions and MOD references are significant. Similar-looking codes can identify different dimensions, cable lengths, fittings, mounting details, approvals or controlled modifications.
Manufacturer References
Bently Nevada datasheet 141600 Rev. AC, 21000, 24701 and 164818 Proximity Probe Housing Assemblies.
