Woodward easYgen-2300-5/P1 Generator Control And Protection Unit

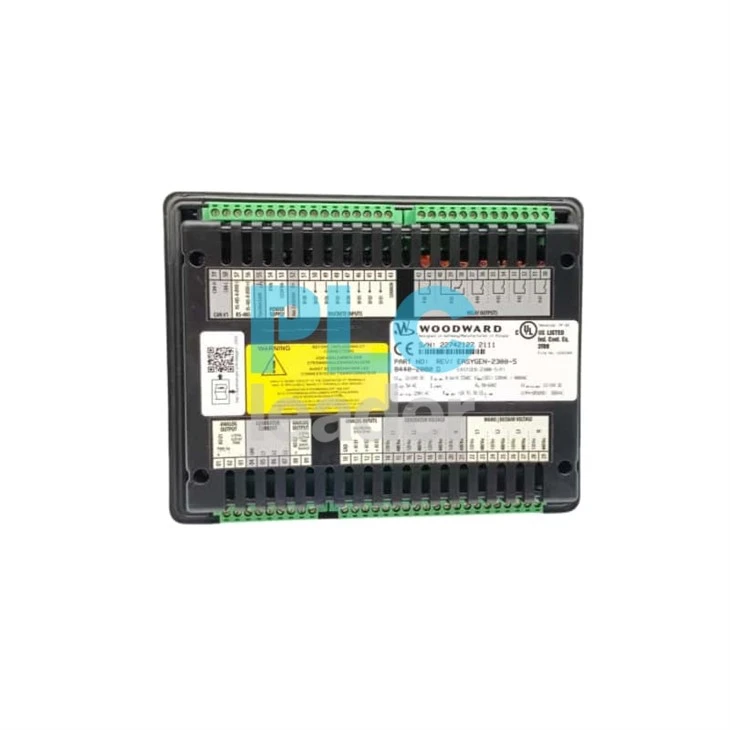

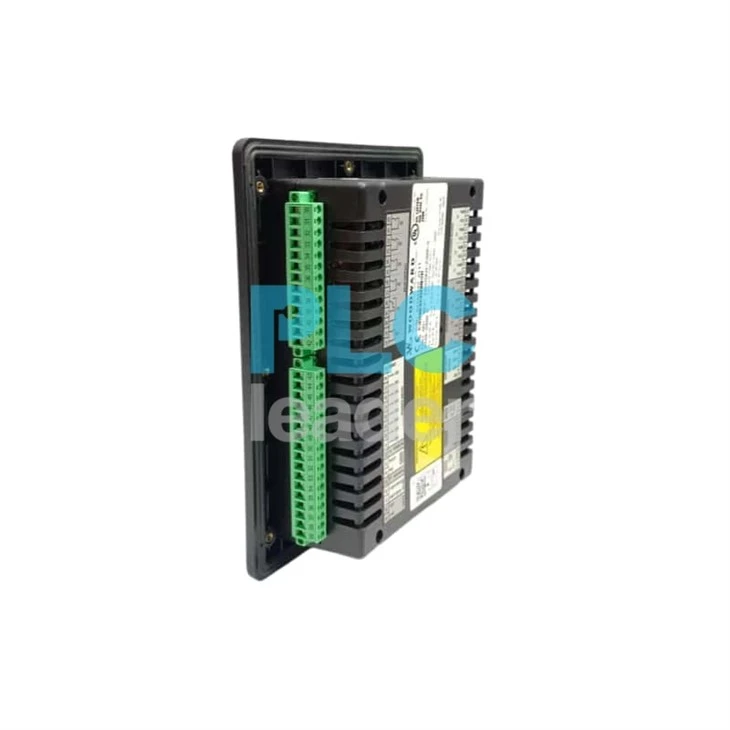

Woodward identifies 8440-2080 as the easYgen-2300-5/P1 front-panel genset controller with 5 A current-transformer inputs. It belongs to the easYgen-2000 simple-paralleling family for generator control, protection, synchronization and load sharing.
Confirmed Product Information
| Manufacturer | Woodward |
| Part number | 8440-2080 |
| Official designation | easYgen-2300-5/P1 |
| Product family | easYgen-2000 Series simple-paralleling genset controls |
| Package | P1 |
| Current input version | 5 A CT inputs |
| Mounting / HMI | Front-panel flush mounting with graphical LC display and soft keys |
| Power supply | 12/24 VDC; operating input range 8 to 40 VDC |
Control And Power-Management Functions
Parallel And Standby Operation
Supports single-unit mains-parallel operation, multiple-unit island operation, AMF, standby and critical operating modes. Woodward specifies load sharing and load-dependent start/stop for up to 16 gensets.
Breaker And Transfer Control
Provides GCB and MCB synchronization using slip-frequency or phase-matching methods, breaker monitoring, open and closed transition, interchange, soft loading and soft unloading.
Engine And Setpoint Control
Includes diesel/gas start-stop logic and remote adjustment of speed, frequency, voltage, active power, reactive power and power factor through configured inputs or communications.
Operator And Event Functions
Uses a 128 × 64 dot graphical display, operating-hours/start/maintenance counters, generator kWh/kvarh metering and a 300-entry FIFO event recorder with battery-backed real-time clock.
I/O And Communications For 8440-2080
| Configurable discrete inputs | 8 isolated inputs; 8 to 40 VDC range |
| Configurable discrete outputs | 6 potential-free relay outputs |
| External I/O expansion | Up to 16 additional discrete inputs and 16 discrete outputs through CANopen expansion; up to two Woodward IKD 1 boards may be connected |
| Configurable analog inputs | 3 FlexIn inputs; 0 to 500 ohms or 0 to 20 mA |
| Configurable analog outputs | 2 isolated outputs; ±10 V, ±20 mA or PWM; external 500-ohm resistor supplied for voltage mode |
| CAN communication | 1 isolated FlexCAN interface supporting CANopen expansion and ECU J1939 functions described by Woodward |
| Serial communication | 1 RS-485 Modbus RTU slave interface for the easYgen-2300 P1 package |
| Service port | USB or RS-232 through the matching Woodward DPC cable; USB P/N 5417-1251 or RS-232 P/N 5417-557 |
Electrical, Environmental And Mechanical Data
Measurement Inputs
Generator voltage, three generator currents and mains/busbar voltage measurement are provided. The 5 A version has a 3.0 × rated-current linear generator measurement range and 10 × rated-current one-second short-time rating.
Voltage And Frequency
Woodward lists 120 VAC and 480 VAC measurement classes, Class 1 accuracy and a 50/60 Hz measuring system with a 40 to 85 Hz range. Verify the configured measuring range before connection.
Temperature And Humidity
Operating ambient: -20 to +70 °C (-4 to +158 °F). Storage: -30 to +80 °C (-22 to +176 °F). Humidity: up to 95%, non-condensing.
Housing And Installation
Plastic front-panel housing, approximately 219 × 171 × 61 mm and 800 g. Panel cutout is 186 [+1.1] × 138 [+1.0] mm. Connections use screw/plug terminals up to 2.5 mm².
Applications And Integration Conditions
The easYgen-2300 package is intended for generator-set control in single-unit mains-parallel and multi-unit island systems. Its functions cover synchronization, breaker operation, load/var sharing, AMF and configurable protection. Installation depends on the generator and mains sensing arrangement, CT ratio, breaker logic, engine interface, analog I/O, CAN/RS-485 configuration and ToolKit parameter file.
Before commissioning 8440-2080, confirm the panel cutout, front fastening method, rear clearances, power supply, configured CT/voltage ranges, control wiring, CAN and Modbus addresses, supported ECU protocol and the approved project settings. A parameter backup should be retained before exchanging a unit.
Lifecycle, Service Bulletin And Replacement Guidance
Frequently Asked Questions
Which exact Woodward product is 8440-2080?
Woodward lists 8440-2080 as easYgen-2300-5/P1: a front-panel easYgen-2000 genset control and protection unit with 5 A CT inputs and Package P1 communications.
Can 8440-2080 control multiple generator sets?
Yes. Woodward states that the easYgen-2000 family can share active and reactive load and perform load-dependent start/stop for up to 16 gensets in island operation. The complete system design and settings must match the installed project.
Which communications are available on 8440-2080?
The easYgen-2300 P1 feature table lists one FlexCAN interface, one RS-485 Modbus RTU slave interface and a service port used with the appropriate Woodward DPC USB or RS-232 cable.
Does Woodward Service Bulletin 37987 apply to every 8440-2080?
No. The bulletin identifies a specific group of serial numbers. Compare the exact serial number on the unit with Appendix A before arranging an update, repair or exchange.
Is there a confirmed direct replacement for 8440-2080?
The reviewed Woodward sources do not name a universal drop-in replacement. Any change must preserve the application mode, CT and voltage sensing, breaker logic, I/O, communications, ECU interface, panel dimensions, wiring and approved parameter file.
Model Identification
Use the exact part number 8440-2080 together with the official designation easYgen-2300-5/P1. Search forms such as "84402080", "easYgen 2300 5 P1" or "Woodward easYgen-2300 controller" can help locate records, but they must not replace verification of the physical part-number and serial-number labels.
Manufacturer References
Woodward Product Specification 37548B, easYgen-2200/2300/2500 Operation Manual 37535D, Woodward Industrial Products Catalog 25182 Rev. AG, and Woodward Service Bulletin 37987 Rev. A.
Browse generator and industrial control products | Request a quote for this exact model
About PLC Leader
PLC Leader helps industrial maintenance, engineering and procurement teams identify automation components by exact manufacturer reference. Our sourcing scope covers PLC, DCS, drive, generator-control, safety and machinery-monitoring parts for current and legacy installations.
Each RFQ is reviewed against the complete model, application, requested condition, quantity and destination before supply terms are confirmed.
