330104-01-09-90-01-05

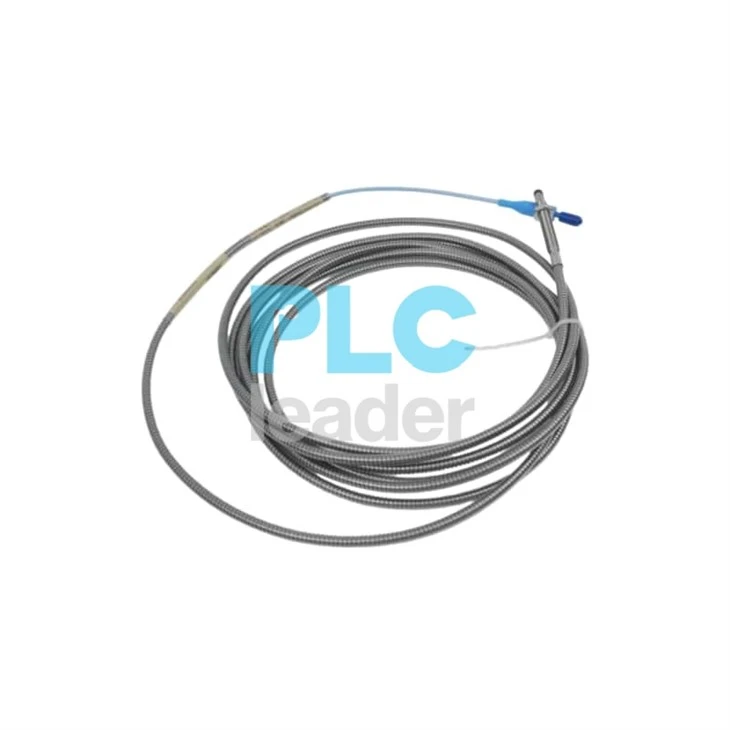

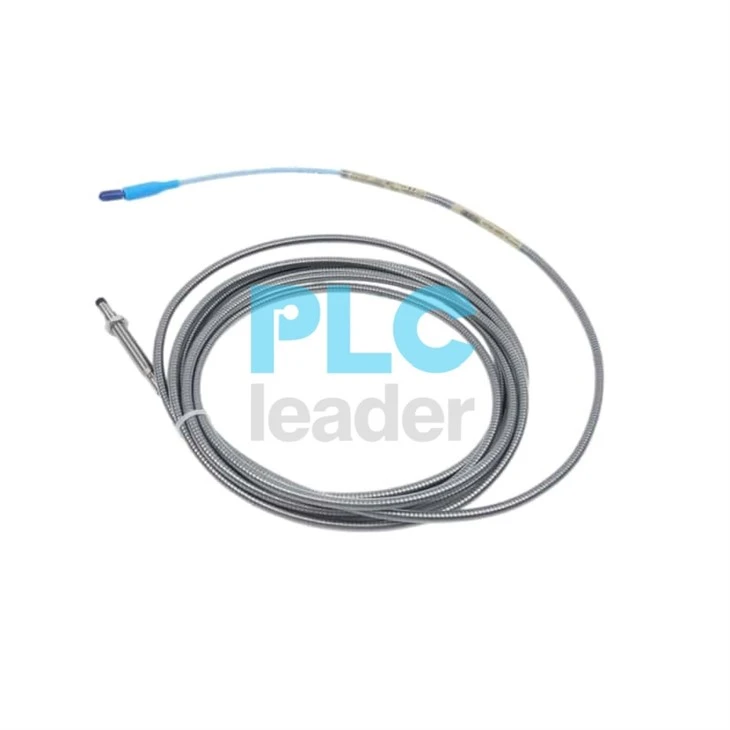

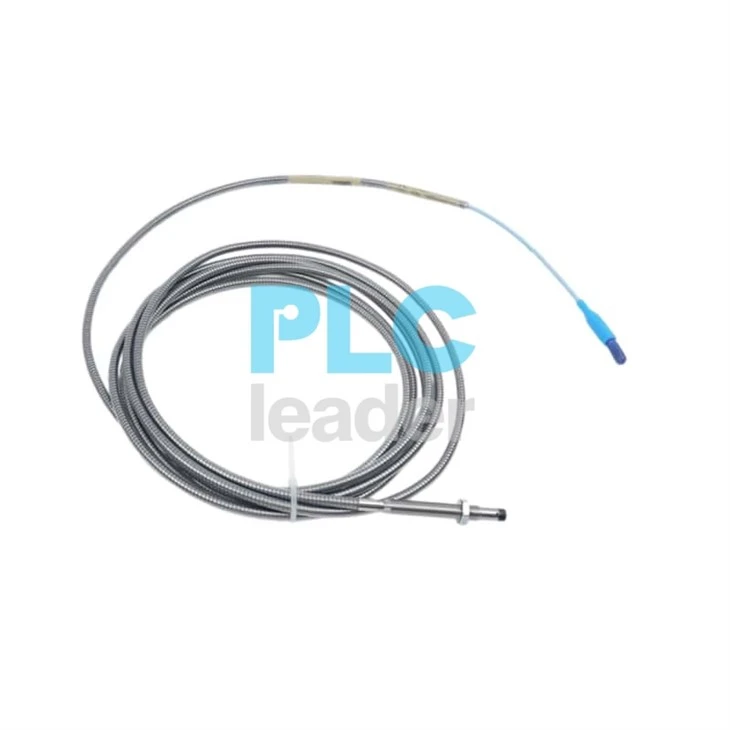

Bently Nevada 330104-01-09-90-01-05 3300 XL 8 mm Armored M10 Proximity Probe
330104-01-09-90-01-05 is a metric 3300 XL 8 mm armored proximity probe with a 10 mm unthreaded length, 90 mm case, 9.0 m (29.5 ft) integral cable, protected ClickLoc connection and CSA, ATEX and IECEx approvals. Every value below is tied to this complete ordering code and is not copied from a similar suffix.
Confirmed Product Information
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Probe family 330104 | 3300 XL 8 mm probe, M10 × 1 thread, with stainless-steel armor |
| Unthreaded length option 01 | 10 mm |
| Overall case length option 09 | 90 mm |
| Total length option 90 | 9.0 m (29.5 ft) |
| Connector and cable option 01 | Miniature coaxial ClickLoc connector with connector protector; standard cable |
| Agency approval option 05 | CSA, ATEX and IECEx approvals |
| Nominal linear range | 2.0 mm (80 mil) in a matched 3300 XL 8 mm system |
| Nominal scale factor | 7.87 V/mm (200 mV/mil) in a matched 3300 XL 8 mm system |
| Frequency response | 0 to 10 kHz, +0 / -3 dB typical |
| Probe tip diameter | 8 mm |
| System requirement | Use with the 9 m 3300 XL Proximitor sensor. This full-length 9 m probe does not require an extension cable to reach the documented 9 m system length. |
Applications
Confirmed Compatibility And Installation Conditions
Lifecycle And Replacement Guidance
The current manufacturer datasheet lists the 330104 ordering family and does not state that 330104-01-09-90-01-05 is discontinued. It also does not name a universal drop-in replacement for this complete code.
Frequently Asked Questions
What distinguishes 330104-01-09-90-01-05 from the similar 330104 page in this batch?
Its total-length field is 90, specifying 9.0 m (29.5 ft); the related page uses a different total-length field and must not be quoted as the same item.
Which Proximitor sensor arrangement matches 330104-01-09-90-01-05?
Use with the 9 m 3300 XL Proximitor sensor. This full-length 9 m probe does not require an extension cable to reach the documented 9 m system length.
Does 330104-01-09-90-01-05 include cable armor and connector protection?
Yes. Base family 330104 is armored, and option 01 adds the miniature ClickLoc connector with connector protector on standard cable.
Can 330104-01-09-90-01-05 be mixed with non-XL 3300 components?
The manufacturer documents limited interchangeability, but any mixed system is limited to the earlier system performance. Verify the complete installed signal chain and calibration.
Which approval check applies to 330104-01-09-90-01-05?
Suffix 05 specifies CSA, ATEX and IECEx approvals. Confirm the actual unit marking and site-specific installation document before use.
Model Identification
Use the complete identifier 330104-01-09-90-01-05. Hyphen placement, zero padding and every suffix field are significant; compare the full nameplate and purchase record before ordering.
Manufacturer References
Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, document 141194 Rev. AN.
