330102-00-30-10-01-05

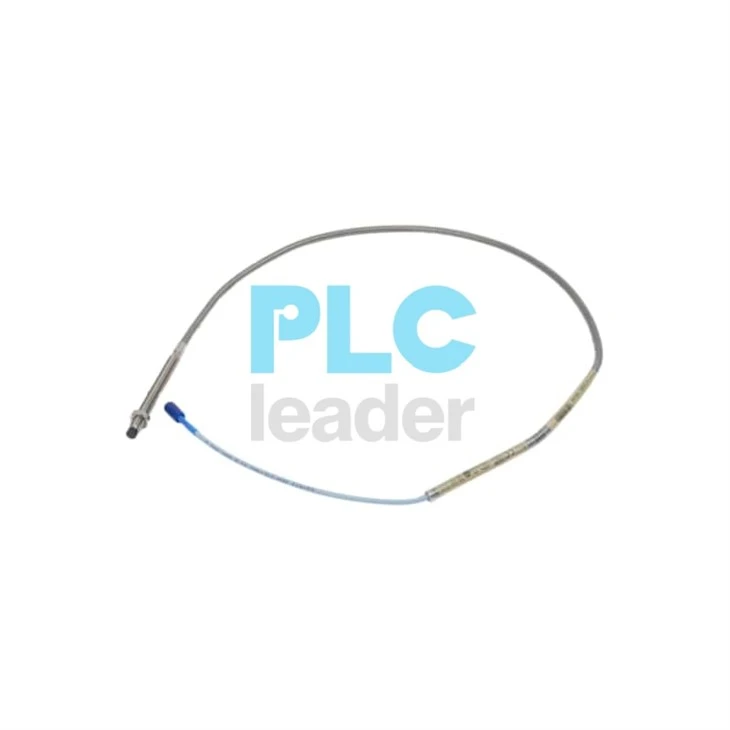

Bently Nevada 330102-00-30-10-01-05 3300 XL 8 mm Armored Proximity Probe
330102-00-30-10-01-05 is a 3/8-24 UNF armored 3300 XL 8 mm probe with 0.0 in unthreaded length, a 3.0 in case, 1.0 m total length, connector protector and multiple approvals. Every value below is tied to this complete ordering code and is not copied from a similar suffix.
Confirmed Product Information
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Probe family 330102 | 3300 XL 8 mm probe, 3/8-24 UNF thread, with armor |
| Unthreaded length option 00 | 0.0 in |
| Overall case length option 30 | 3.0 in |
| Total length option 10 | 1.0 m (3.3 ft) |
| Connector / cable option 01 | Miniature coaxial ClickLoc connector with connector protector, standard cable |
| Approval option 05 | CSA, ATEX and IECEx approvals |
| Linear range | 2.0 mm (80 mil), approximately 0.25 to 2.3 mm from the target |
| Recommended gap | 1.27 mm (50 mil) |
| Scale factor | 7.87 V/mm (200 mV/mil), ±5% including interchangeability error |
| Frequency response | 0 to 10 kHz, +0 / -3 dB |
| Target calibration | Factory calibrated to AISI 4140 steel unless another target material is specified |
Applications
Confirmed Compatibility And Installation Conditions
Lifecycle And Replacement Guidance
The current manufacturer datasheet lists the 330102 family and does not state a discontinuation date or universal replacement for 330102-00-30-10-01-05.
Frequently Asked Questions
Which extension cable and Proximitor sensor match 330102-00-30-10-01-05?
Use matching 3300 XL 8 mm components so the 1.0 m probe plus extension cable equals the selected 5 m or 9 m Proximitor system length.
Can 330102-00-30-10-01-05 be mixed with an older non-XL 3300 system?
The manufacturer permits defined backward compatibility, but a mixed system is limited to the earlier system performance; verify every component and calibration.
What mechanical configuration does 330102-00-30-10-01-05 use?
It is an armored 3/8-24 UNF probe with 0.0 in unthreaded length and a 3.0 in overall case.
Does 330102-00-30-10-01-05 include environmental connector protection?
Yes. Option 01 includes the ClickLoc connector protector; install and seal it according to the manufacturer instructions.
What must be verified for the approval suffix on 330102-00-30-10-01-05?
Suffix 05 identifies CSA, ATEX and IECEx approvals. Confirm the delivered marking and applicable safe-installation drawing for the destination.
Model Identification
Use the complete identifier 330102-00-30-10-01-05. Hyphen placement, zero padding and every suffix field are significant; compare the full nameplate and purchase record before ordering.
Manufacturer References
Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, document 141194 Rev. AN.
