330880-01-20-058-03-02

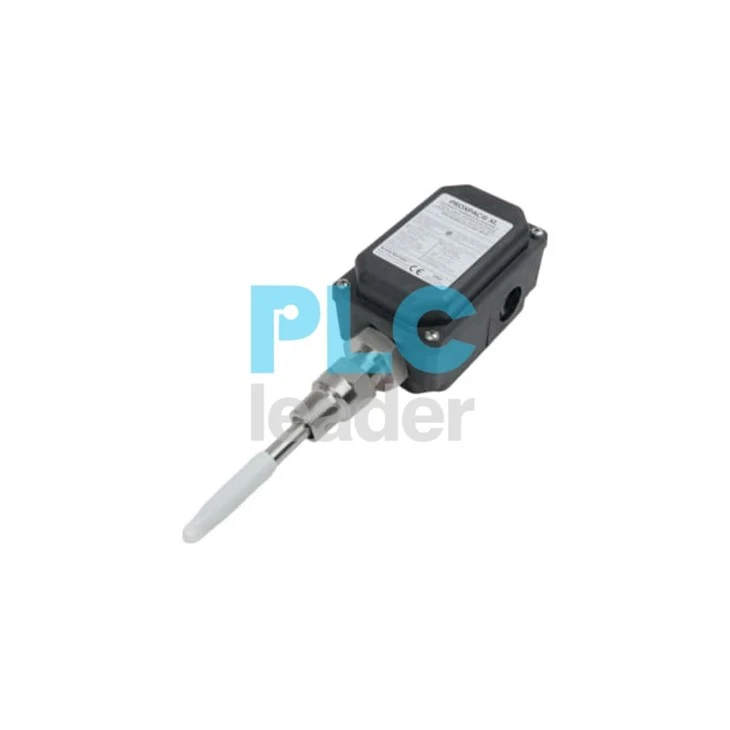

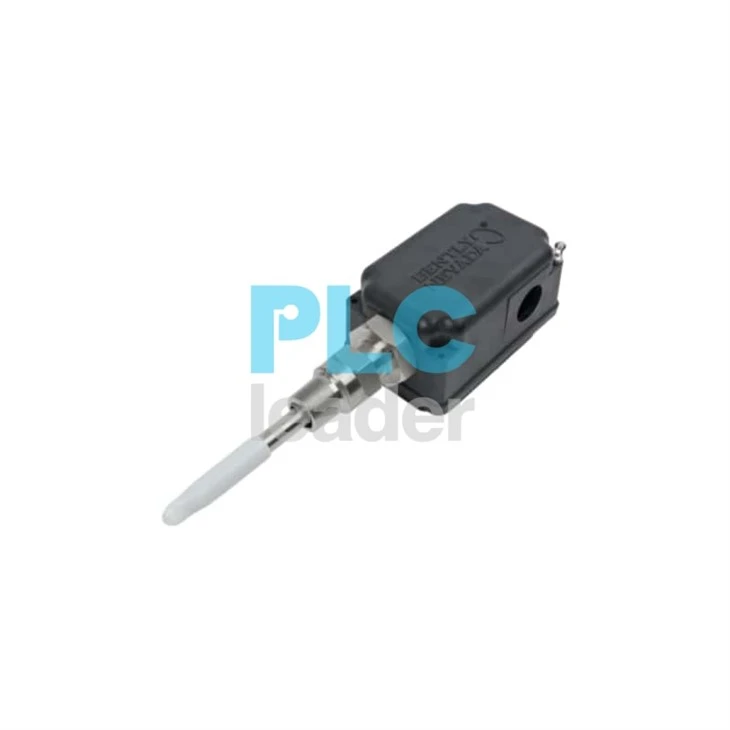

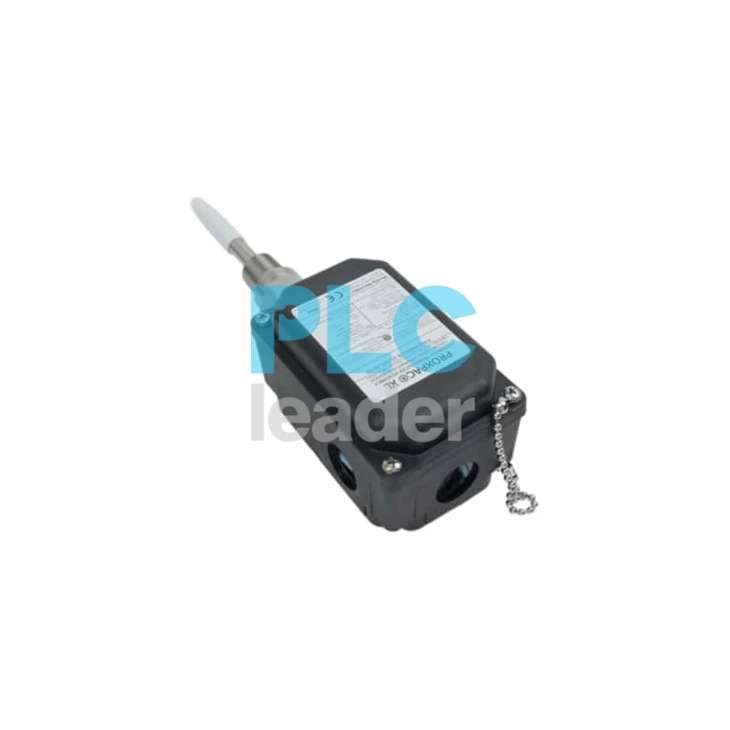

Bently Nevada 330880-01-20-058-03-02 PROXPAC XL Housing with Proximitor Sensor - No Probe
330880-01-20-058-03-02 is an English PROXPAC XL configuration that includes the protective housing and a Proximitor sensor with multiple approvals, but explicitly does not include a probe. Every value below is tied to this complete ordering code and is not copied from a similar suffix.
Confirmed Product Information
| Manufacturer | Bently Nevada, a Baker Hughes business |
| Ordering family | 330880 English PROXPAC XL proximity transducer assembly |
| Probe and approvals option 01 | No probe; Proximitor sensor with Multiple Approvals |
| Standoff adapter option 20 | 2.0 in (51 mm) |
| Probe penetration option 058 | 5.8 in (approximately 147 mm) |
| Fittings option 03 | One 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT stainless-steel reducer, and two plugs |
| Mounting thread option 02 | 3/4-14 NPT; required when a standoff adapter is ordered |
| Integrated architecture | Housing cover contains the Proximitor sensor; field wiring connects to the monitor |
| Environmental enclosure | Type 4X and IP66 |
| Housing material | Glass- and conductive-fiber-reinforced polyphenylene sulfide (PPS) |
| Combined B + C dimension | 7.8 in (approximately 198 mm), below the more-than-12-in support threshold |
Applications
Confirmed Compatibility And Installation Conditions
Lifecycle And Replacement Guidance
The current PROXPAC XL datasheet lists the 330880 family and does not state that 330880-01-20-058-03-02 is discontinued. It does not identify a universal replacement for this exact no-probe configuration.
Frequently Asked Questions
Does 330880-01-20-058-03-02 include a probe?
No. Option 01 provides no probe; it supplies the Proximitor sensor with Multiple Approvals in the PROXPAC XL housing.
Which probe can be ordered for 330880-01-20-058-03-02?
Select a compatible 3300 XL 8 mm probe only after confirming the installed sleeve, system length, connector, target material and approval requirements.
Does 330880-01-20-058-03-02 require additional sleeve support?
Its 2.0 in standoff plus 5.8 in penetration totals 7.8 in, below the manufacturer threshold of more than 12 in.
Which fittings are supplied with 330880-01-20-058-03-02?
Option 03 includes one 3/4-14 NPT fitting, one 3/4-14-to-1/2-14 NPT stainless reducer and two plugs.
Can a probe-included 330880 suffix directly replace 330880-01-20-058-03-02?
Do not assume that. Probe option, mechanical dimensions, approvals, system length and field installation all require verification.
Model Identification
Use the complete identifier 330880-01-20-058-03-02. Hyphen placement, zero padding and every suffix field are significant; compare the full nameplate and purchase record before ordering.
Manufacturer References
Bently Nevada PROXPAC XL Proximity Transducer Assembly Datasheet, document 178554 Rev. E.
